Easy, Fast and Flexible!

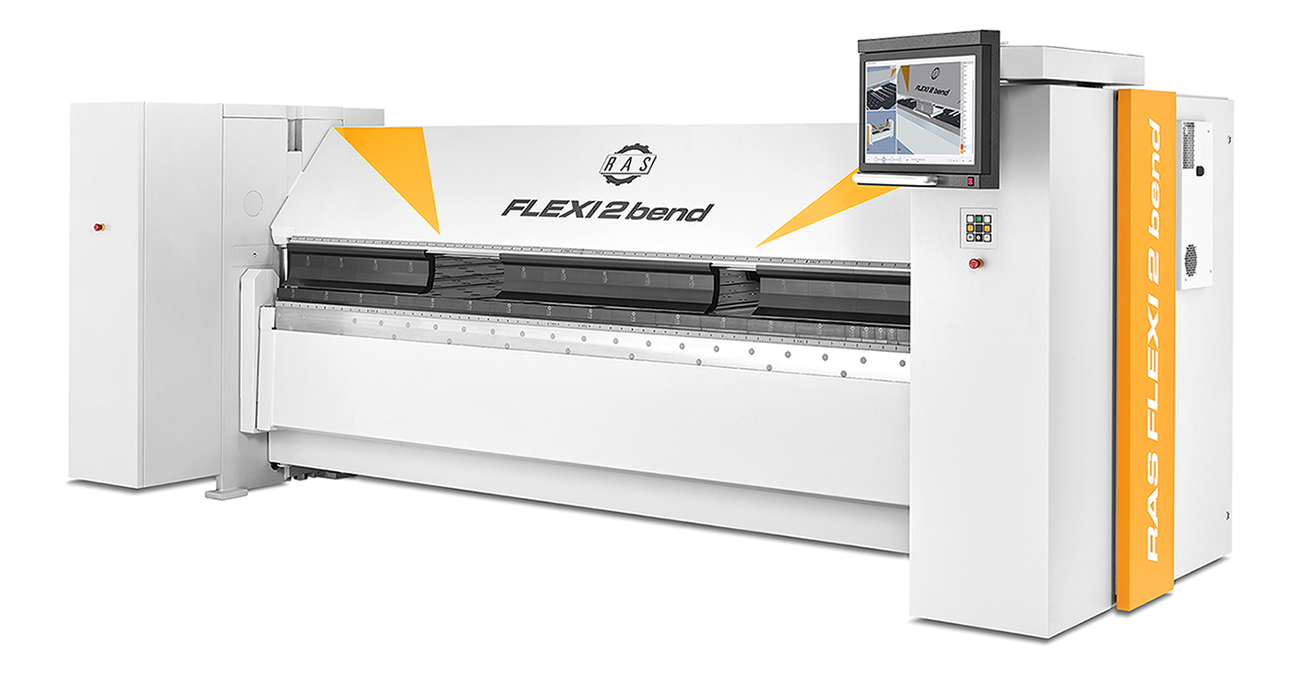

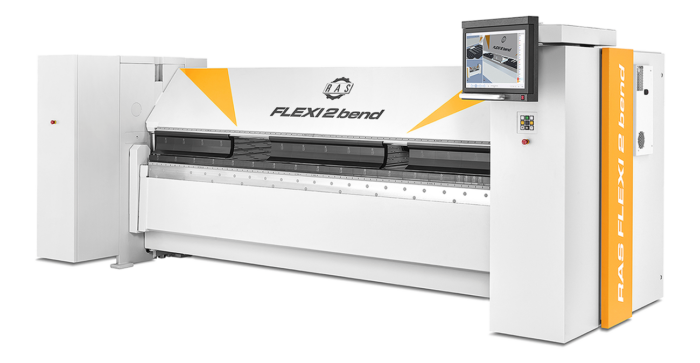

The FLEXI2bend metal folding system can be used to produce almost any metal bending part geometry, a materpiece of flexibility! Unique and complex parts with high added value can be bent by the FLEXI2bend with the same precision and repeatability as simple cassettes, panels or profiles.The Bendex software automatically programs the parts, evaluates alternative bending strategies, and shows the bending sequence on the monitor in 3D. Expert knowledge converted into software!
The Click-In-Tool system for the upper beam and the folding beam accepts the sharp tools, the 80 mm and 155 mm deep goatsfoot tools, as well as the segmented folding beam tools, and clamps them automatically. The 15″ Touch&More CNC presents a graphical setup instruction to the operator.
The manual or intelligent crowning system built into the extremely deep folding beam allows accurate bends and precise bend radii. The backgauge and sheet support system can be extended as J- or U-shape to 3050 mm or 4050 mm.
Highlights
- Machine models: 4060 x 2.5 mm and 3200 x 3 mm (mild steel)
- Maximum bending flexibility for cassettes, boxes and profiles
- Bendex graphic software at the machine
- Bendex Office Software. Programming without stopping the machine
- Drawing on the touch monitor or STEP, DXF, GEO file import of the part
- Automatic programming of the bending sequences
- 3D bending simulation
- Material tables: automatic springback compensation
- Expert knowledge implemented in software
- Large
- Segmented upper beam tools for box and panel bending
- Large free space around the tools: allows flexible part design
- Automatic recognition of a tool change
- Automatic recognition of the tool height meets existing safety standards
- Segmented folding beam tools for interrupted bend lines
- Automatic clamping of the upper beam and folding beam tools
- SnapTools: automatic retraction from side flanges
- Fast beam movements: high productivity and throughput
- Easy operation: Short training period
- Operation from the folding beam side (smaller parts and profiles)
- Operation from gauging side (panels)
- Intelligent crowning system for perfectly straight bends
- Rectangular gauging system or center extended T gauging system
- Center oriented bending: optimum bending results
- Solid stop fingers
- Bending up
- Lockable storage space integrated in machine covers
- Air conditioned control cabinet
| Ras FLEXI2bend 73.40 | Ras FLEXI2bend 73.30 | |
|---|---|---|
| Working length | 4060 mm | 3200 mm |
| Material thickness max. | 2.5 mm | 3.0 mm |
| Upper beam upstroke | 300 mm | 300 mm |
| Backauge (standard) | 10 – 1550 mm | 10 – 1550 mm |
| CNC folding beam adjustment | 80 mm | 80 mm |
| CNC lower beam adjustment | 80 mm | 80 mm |
