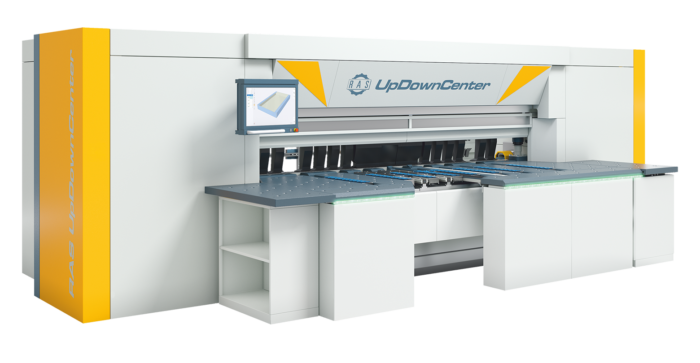

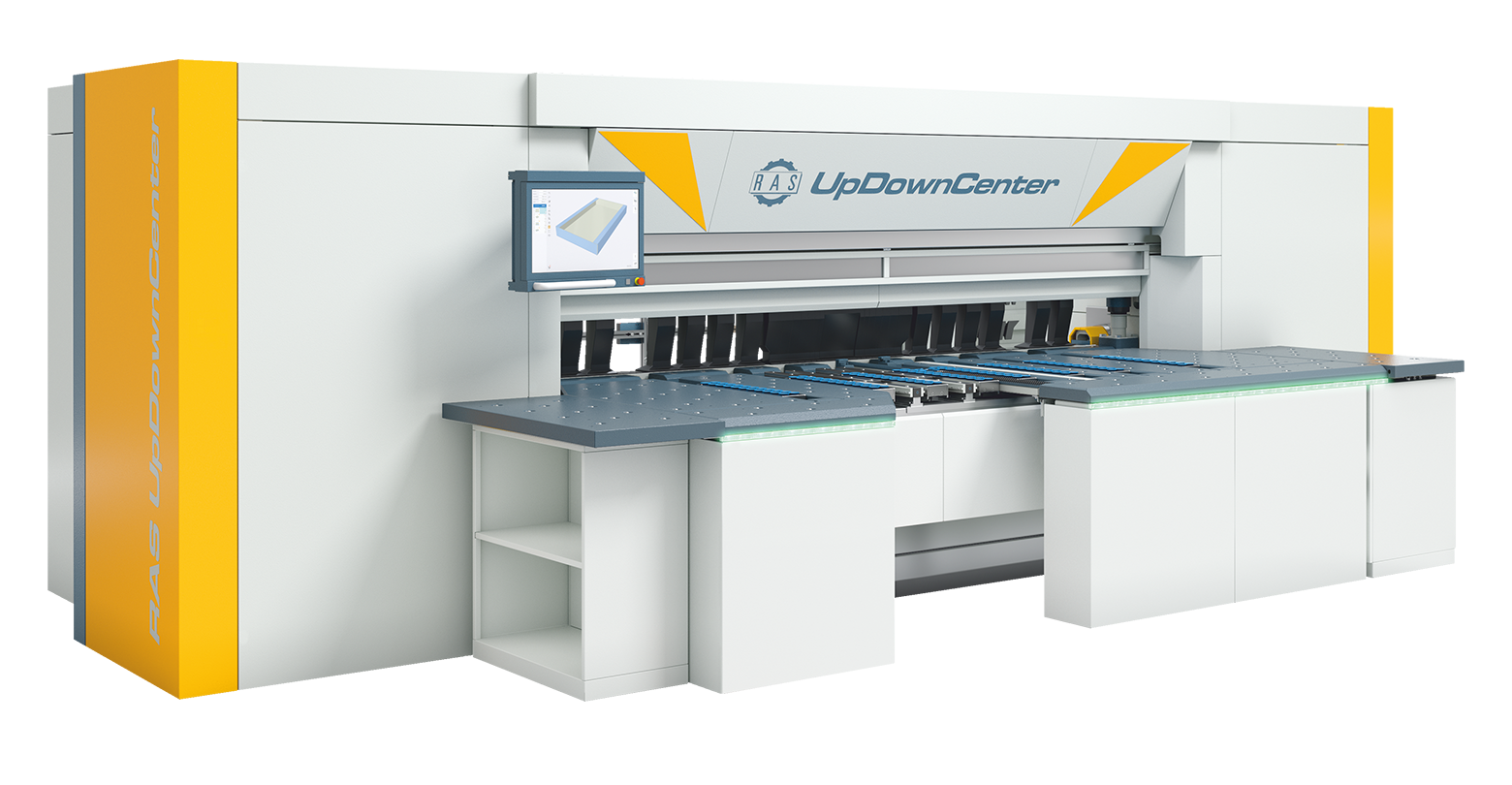

The UpDownCenter-2 is a semi-automatic bending center for high precision panels and boxes up to 4060 mm bending length and up to 600 mm box height. With up to 4 mm mild steel bending capacity, it is ideal for thin and medium material thicknesses. The machine can be operated from the gauging system side. Bent parts with long and high flanges can be also unloaded from the folding beam side. The tool changer cuts set-up times and increases productivity, especially for small production lots or when a tool change is required within the bending sequence. In addition to up and down folding and the automated PosLift part positioning system, the automatic creation of bending programs is another highlight of the machine.

Features:

• Folding up and down
• Rigid machine design
• Supreme angle accuracy
• Straight bends
• Compact machine. Little floorspace required.
• Servo-electric machine
• Fast axes movements

PosLift gauging system

After the blank is squared, suction cups of the PosLift gauging system take over the part. Up to 132 suction cups position the workpiece for each bend. The UpDownCenter 2 forms the sheet up and down, so the machine finishes one side of the part before the operator turns the blank to the next side.

Fast tool change

The tool changer is not only fast, but also extremely flexible. The two gripper arms take the tool segments from the tool magazine and places them within one-hundredth of a millimeter accuracy in the automatic upper beam tool seat.

Highlights!

• Versatile bending of profiles, panels and boxes
• Typical applications: roof and wall, ducting, signs, industrial applications
• Automatic part programming
• Bendex graphic programming: Automatic bending sequence programming
• Bendex-OpenEditor: Individual bending sequence programming
• Operation from the folding beam side (smaller parts and profiles)
• Operation from gauging side (panels)
• Easy operation (short training period)
• Fast beam movements
• Optimum bend results
• Bending up
• Tool heights up to 145 mm
• Automatic recognition of a tool change
• Automatic recognition of the tool height
• Air conditioned control cabinet
