Innovation at its best!

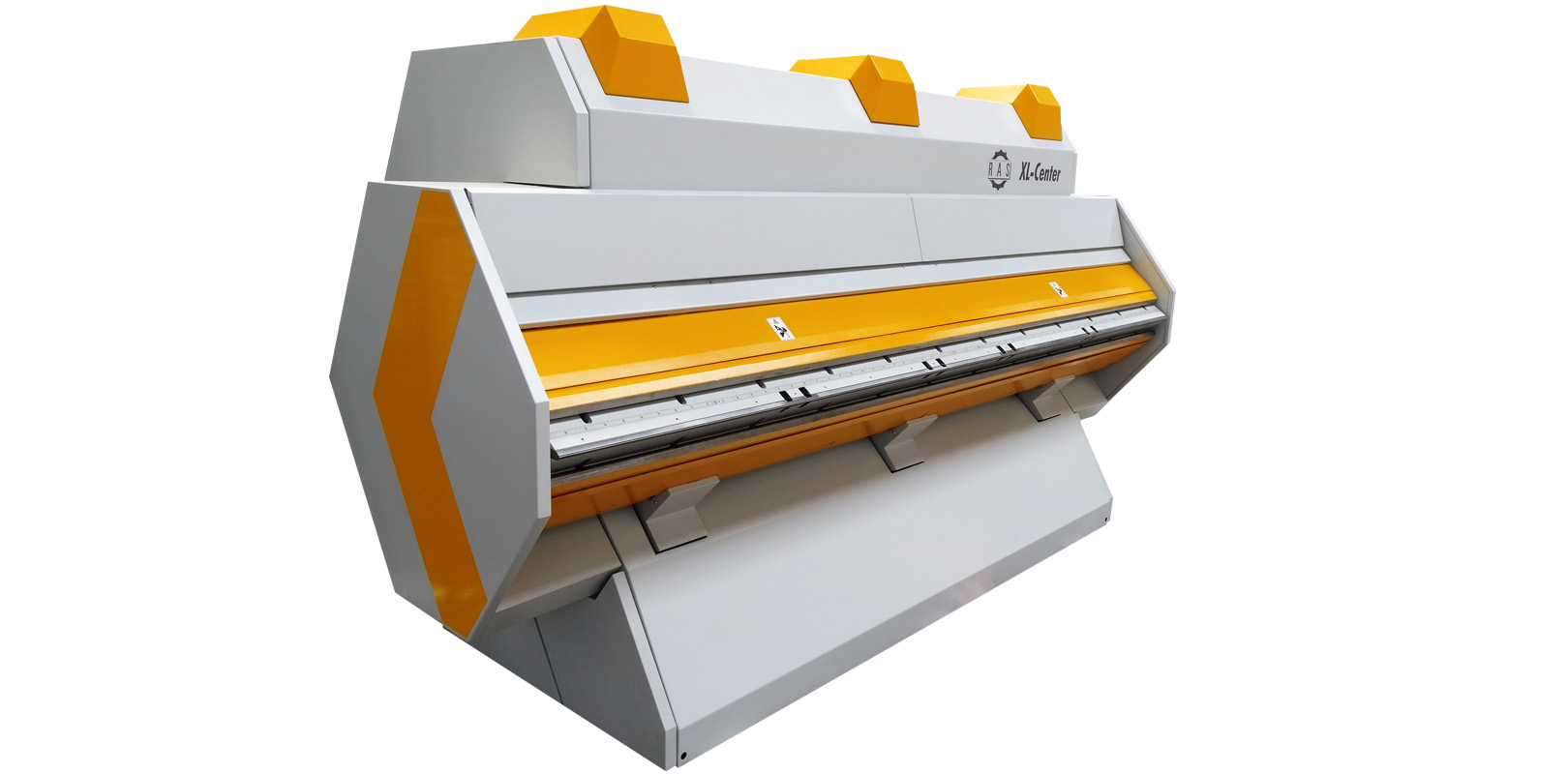

Based on the remarkable XXL-Center technology, RAS introduces a folding innovation for roofing and architectural profiles. With 3200 mm (124 inches) folding length at 1.5 mm mild steel (16-gauge) capacity, the XL-Center offers technical excellence.
By folding the part up and down the new model reduces material handling to a minimum.
With programmable tapered gripper positions for conical parts, the XL-Center defines a new class.
The 300 degrees free space in front of the beams allows for maximum part design flexibility.
The five servo-regulated motors offer unparalleled folding speed. The XL-Center is complete with an all-new graphic PC control.
The stop grippers
The flexible stop grippers position, open and close automatically.
On large blanks the operator positions the workpiece to the stops located inside the grippers. On small blanks the grippers will be closed and used as stoppers.
After the blank is inserted and in position, the upper beam closes and clamps the workpiece. The grippers open and automatically re-grip the part at the far end without any involvement of the operator. Finger pockets allow the grippers to come as close as 6 mm (0.236″) to the bend line.
Ras XL-Center | |
---|---|
Folding length | 3200 mm |
Material thickness max. (Mild Steel) | 1.5 mm |
Material thickness max. (Stainless Steel) | 1.0 mm |
Material thickness max. (Aluminium) | 2.0 mm |
Free Space in front on the beams up to | 300° |
Folding beam speed | 126°/s |
Upper beam speed | 60 mm/s |
Gripper travel range | 6-750 mm |
Tapered position of grippers | +/- 20 mm |
