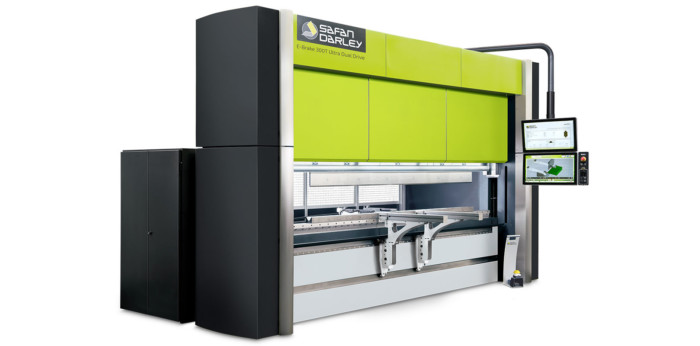

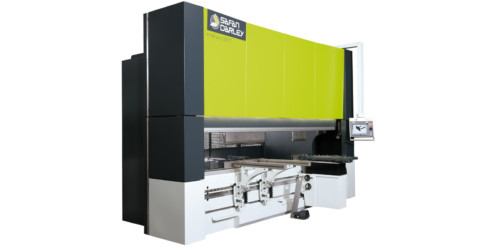

SafanDarley E-Brake 300T Dual Drive

Servo-electronic bending with an E for even bending

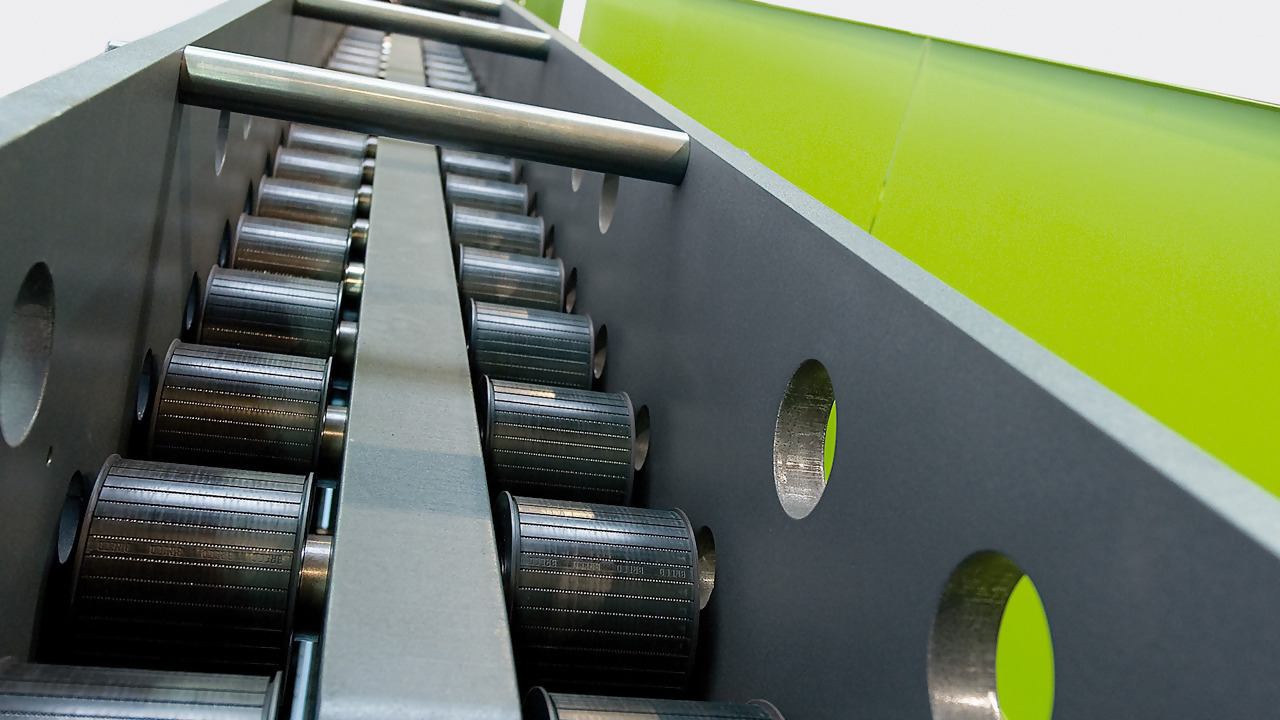

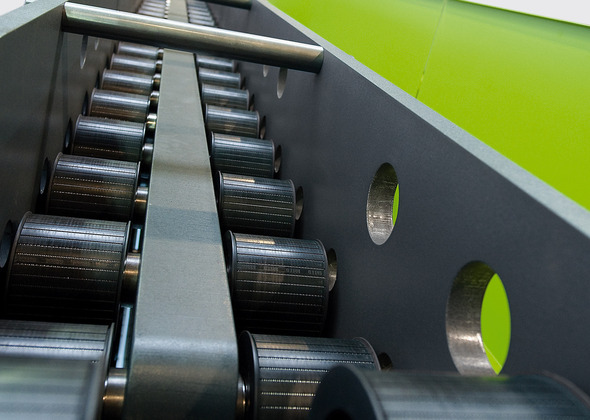

Full electric drive
More than 30% higher productivity
Up to 50% energy saving, low CO2 emissions
No harmful hydraulic oil
Noiseless operation
Full working length backgauge
User friendly touch screen control

Integrated safety

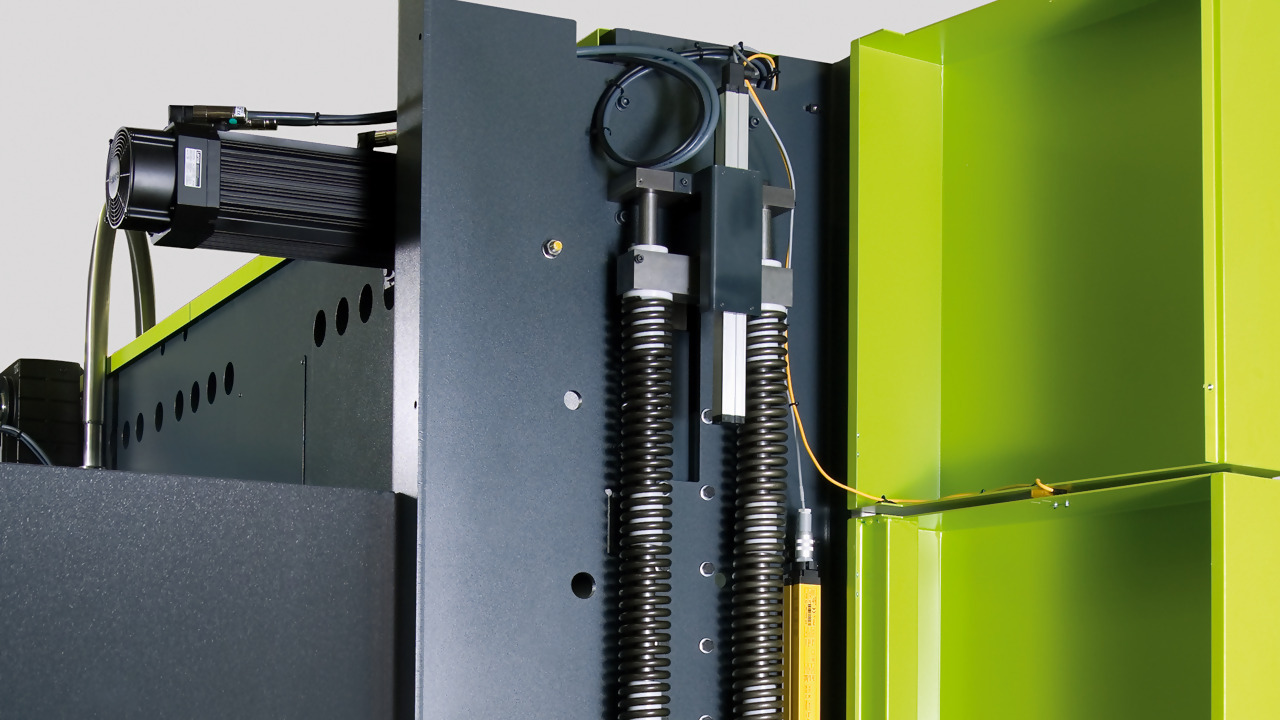

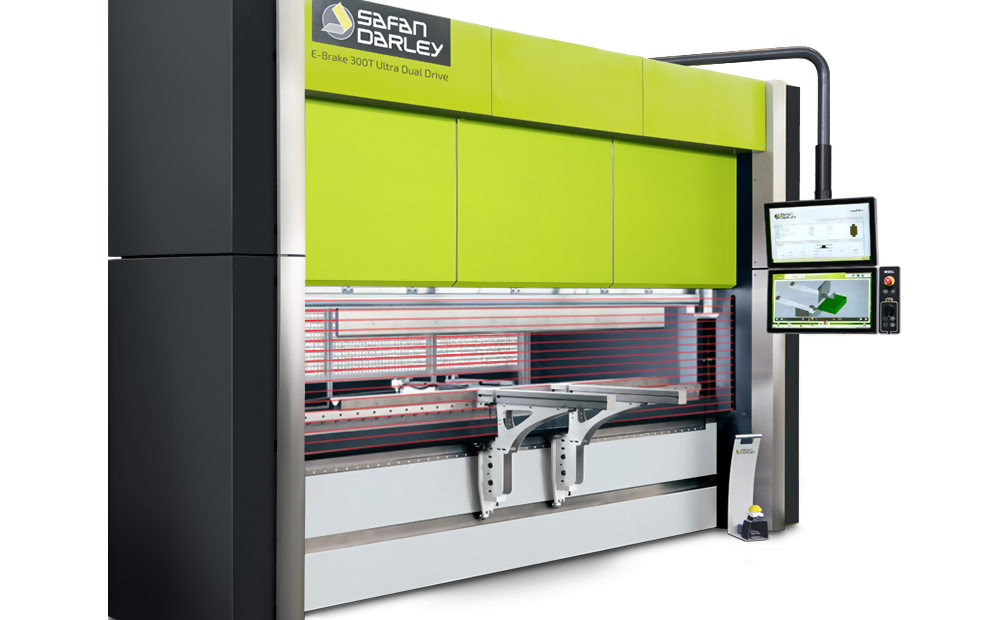

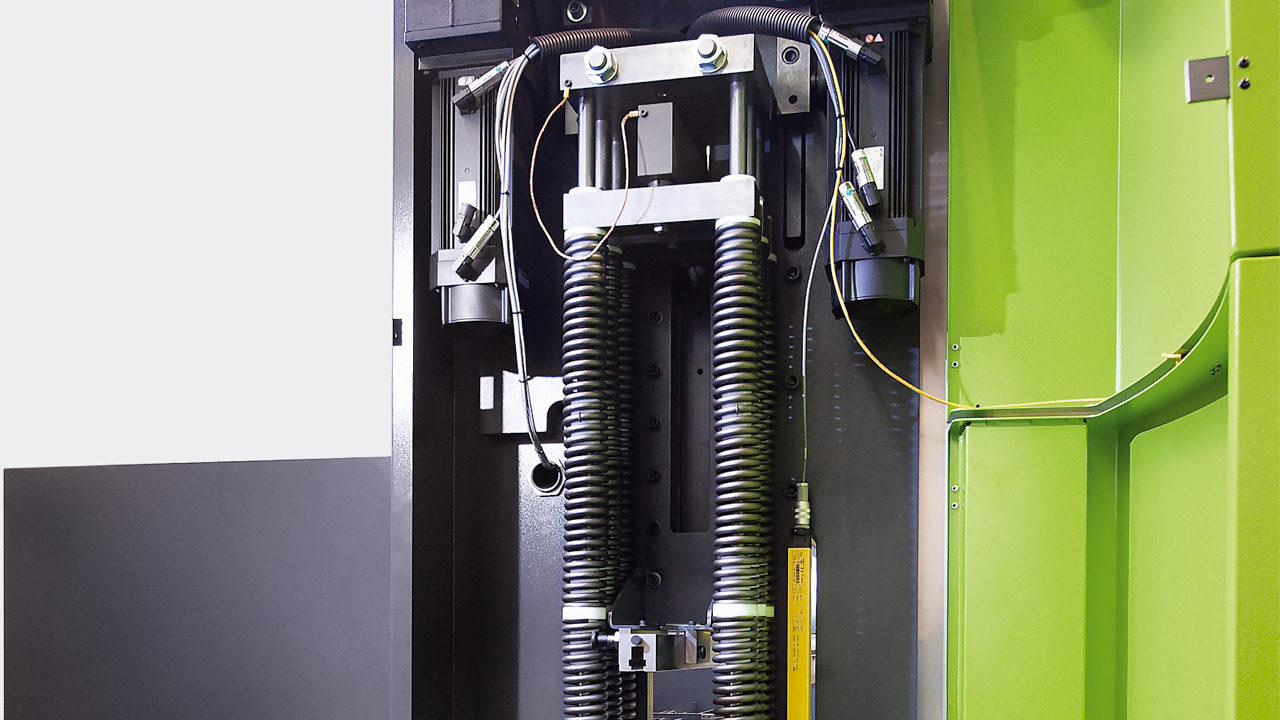

Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls. In addition, the SafanDarley E-Brake has an additional in-built safety provision. The application of a spring return means that the top beam will always move upwards in the event of a failure.

Specification

Model	300-4100
Tonnage	300
Working Length	4100
Maximum stroke in mm	400
Q-dimension in mm	690
Closing speed in mm/sec	90
Bending speed max. in mm/sec	10
Return speed in mm/sec	90
Motor power in kW	30

Standard Configuration

SafanDarley EC20 Touch Screen CNC press brake controls
CNC-controlled R- axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 2.5 mm)
CNC-controlled back gauge (X-axis) with a wide range
Manual adjustment of 2 back gauge fingers across a linear parallel guide
NSCL II MC Premium top tool mechanical clamping system and NSCR II MC Premium crowning
Daylight of 690 mm (Q-dimension)
2 support arms (300 mm in length)*
1 Hold to Run operating console
Programmable and integrated safety light guard*
Safety in conformance with CE

Available Options

Control - EC20, Dual Display, EC30

EC20

Dual Display

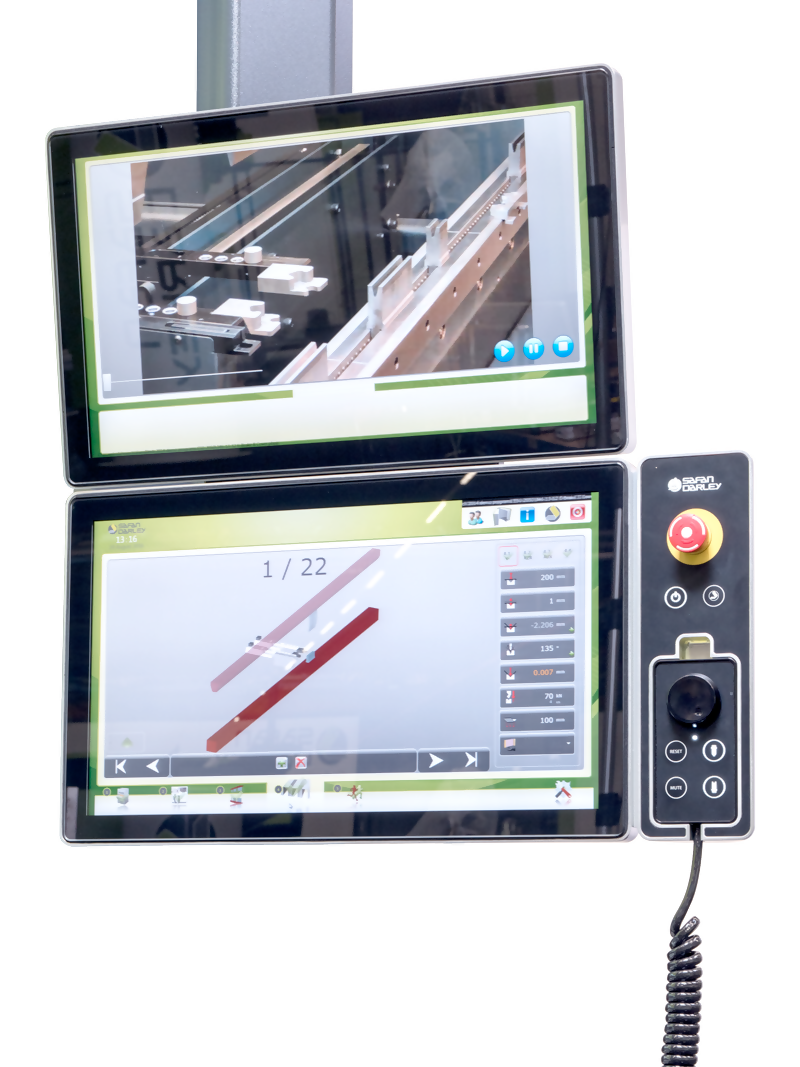

By working with a double display, a paperless working environment is created.

EC30
The EC 30 control enables you to programme in 3D.

Axis / Backgauge System

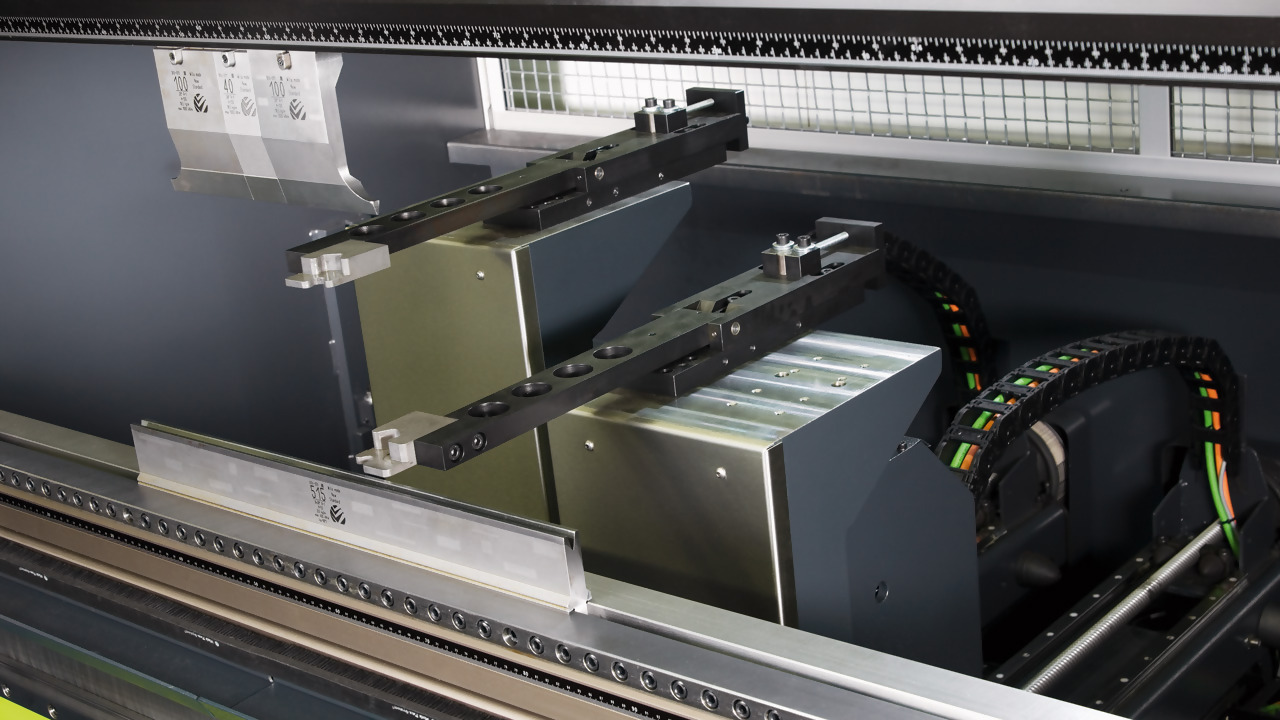

Back gauge system that serves as a gauge for various plate material products. Choice of back gauge systems depending on the complexity of the product to be bend.

Back gauge System Z1+Z2 axis CNC controlled

Back gauge System Delta X CNC controlled

Back gauge System 3D

Q Size

Offers even more freedom of choice in tools.

Q Size 650mm

Q Size 690mm

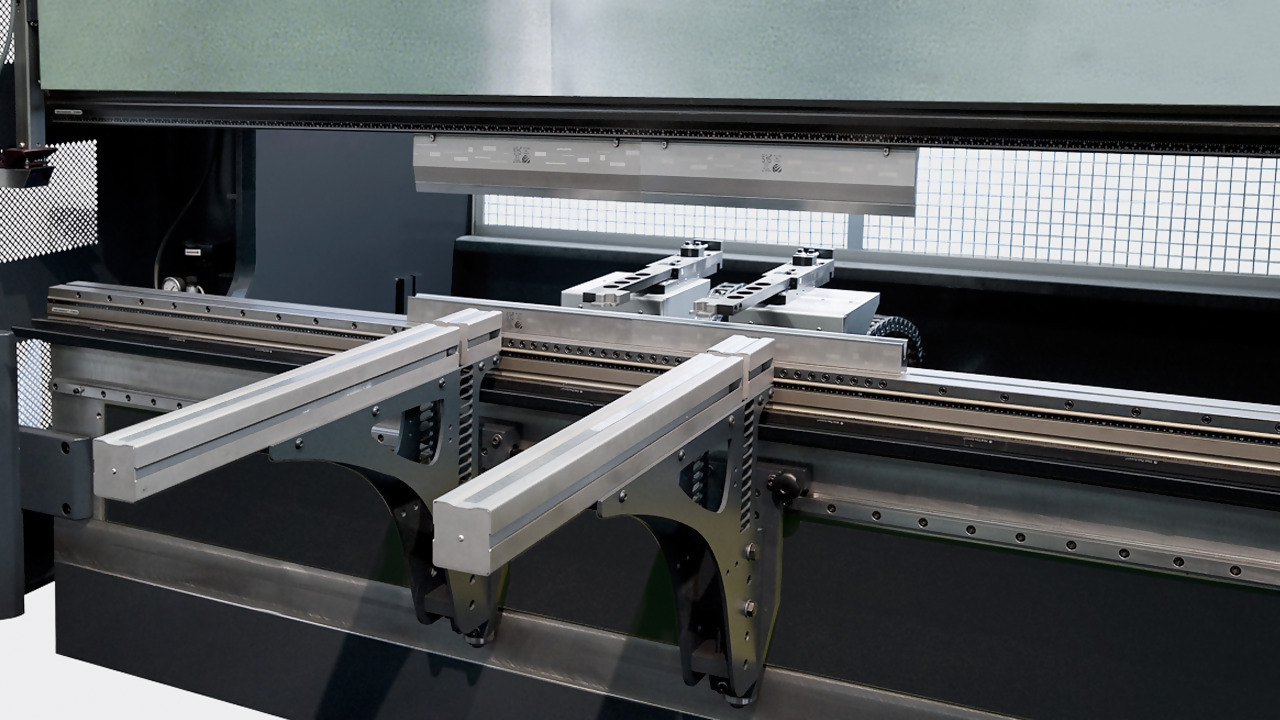

Support Arms/ Sheet Supports

Fixed support arms
Support arms serve to support the plate material.

Fixed support arms can be moved
Fixed arms can be moved along the machine.

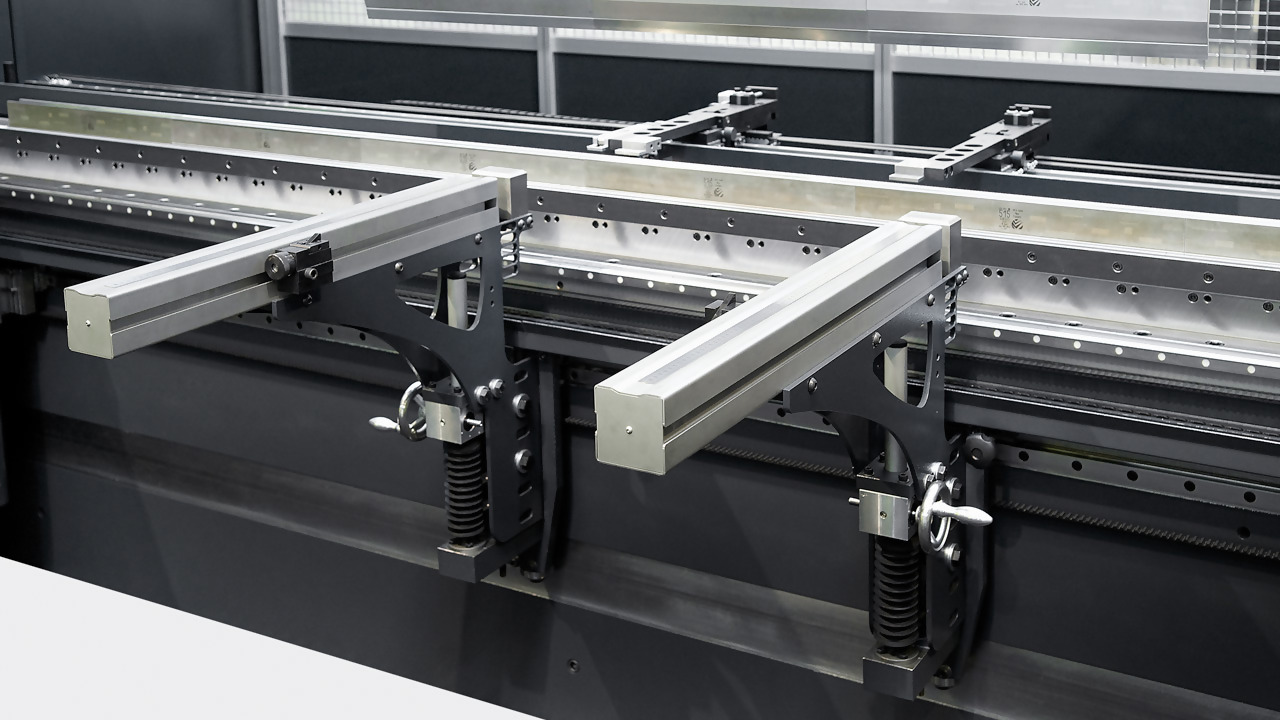

Fixed support arms movable and adjustable in height
Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed support arms pneumatic
Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.

Tooling System

European Style
European Style clamping. Available as manual or pneumatic clamping.

Wila New Standard
New Standard tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools. Available as manual or hydraulic clamping.

Measurement

E-Bend L Blue

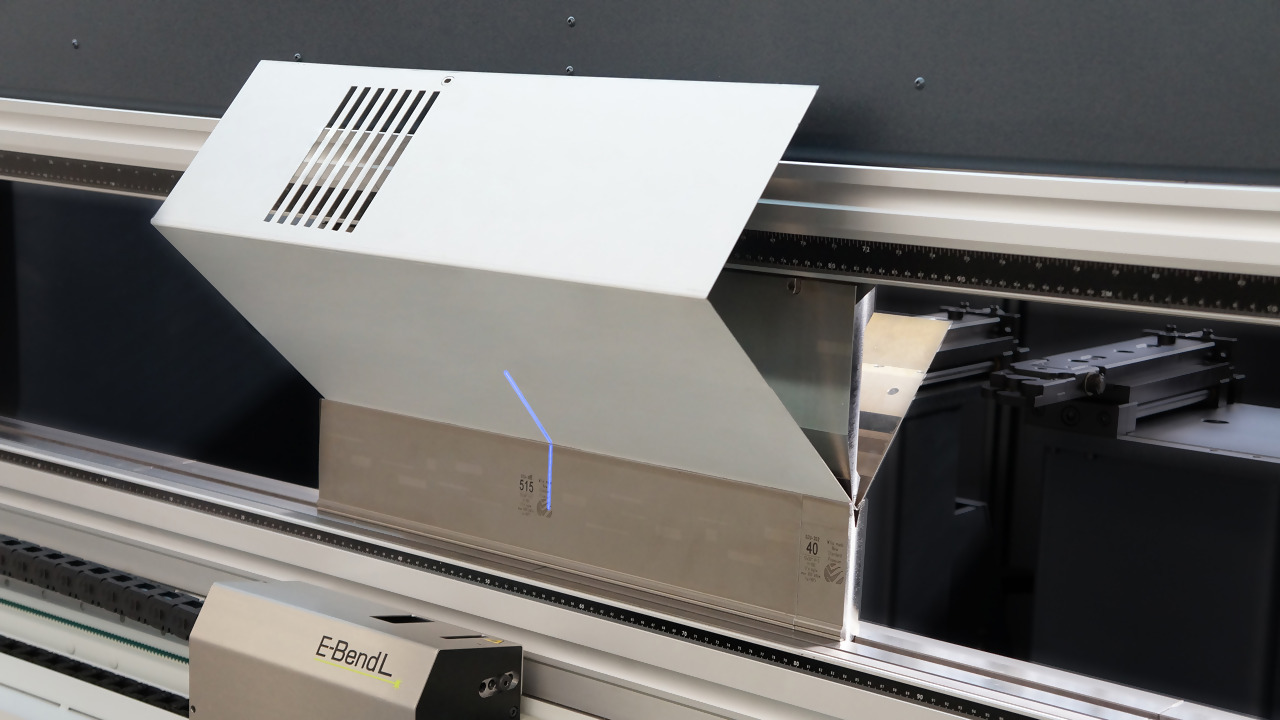

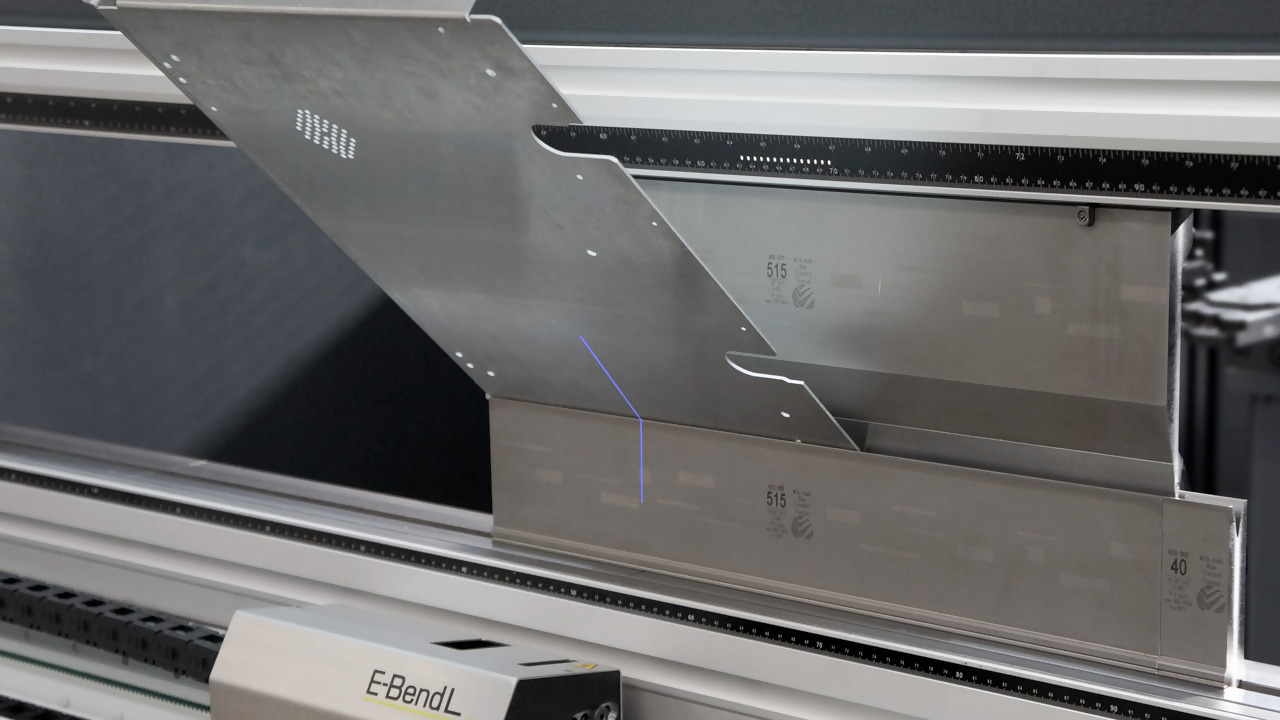

The latest technology in laser angle measuring. The system consists of two laser sensors on each side of the table, which are CNC controlled through the control system. The system continuously displays and corrects the position of the Y axis on the basis of the actual angle of the product, thus guaranteeing that the end product has the highest degree of corner precision.

E-Bend S
Sheet thickness measuring. The system measures the plate thickness down to one hundredth. You can program exactly when measurements must be taken.

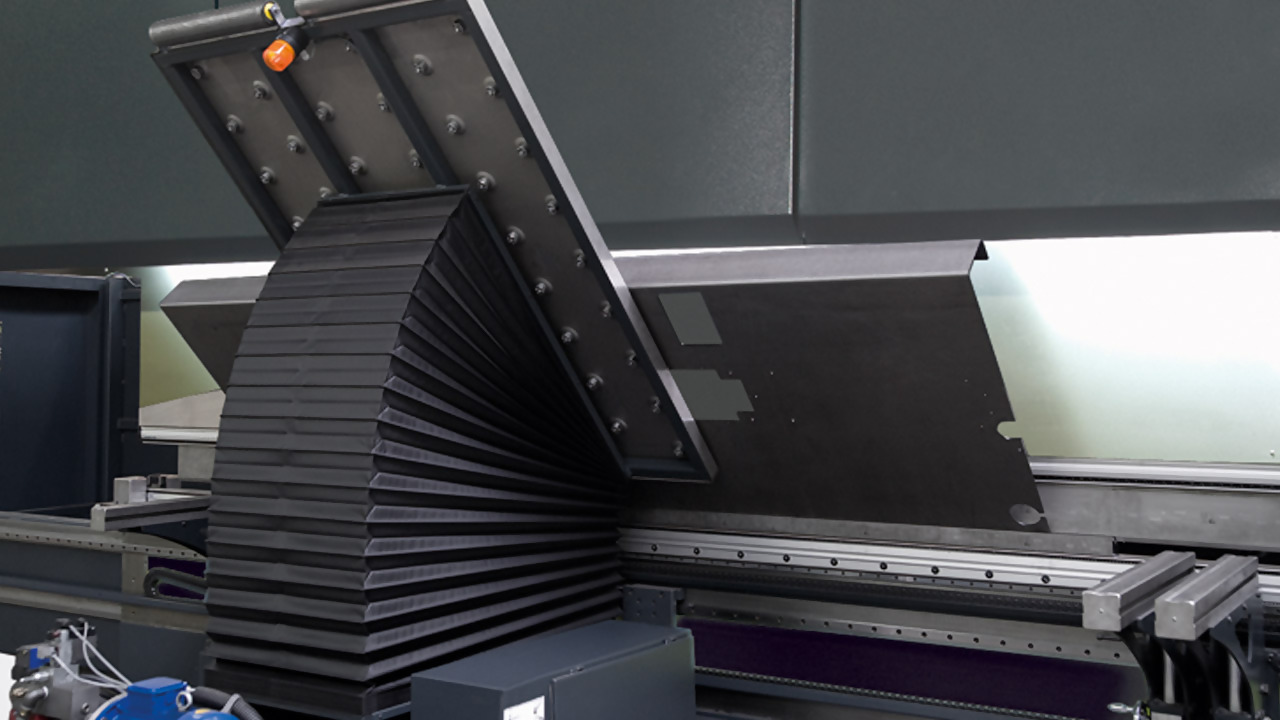

Bending Aid

E-Mate
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 30kg.

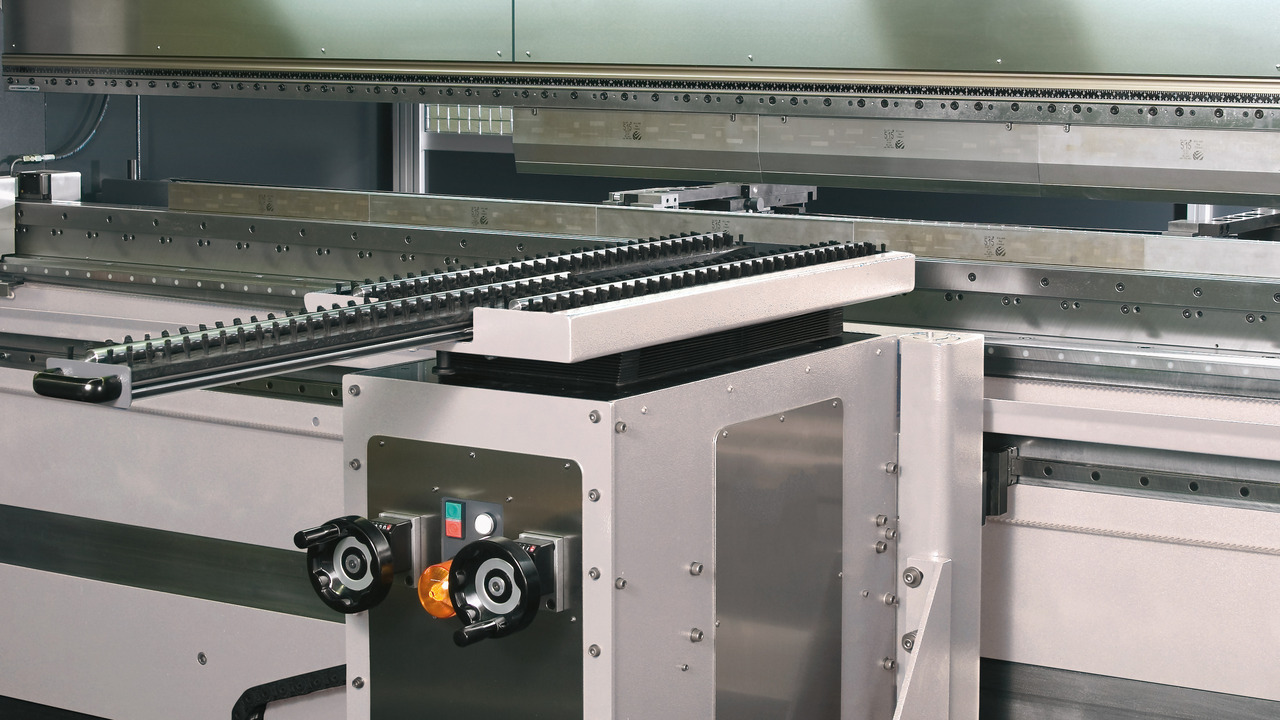

E-Mate Plus

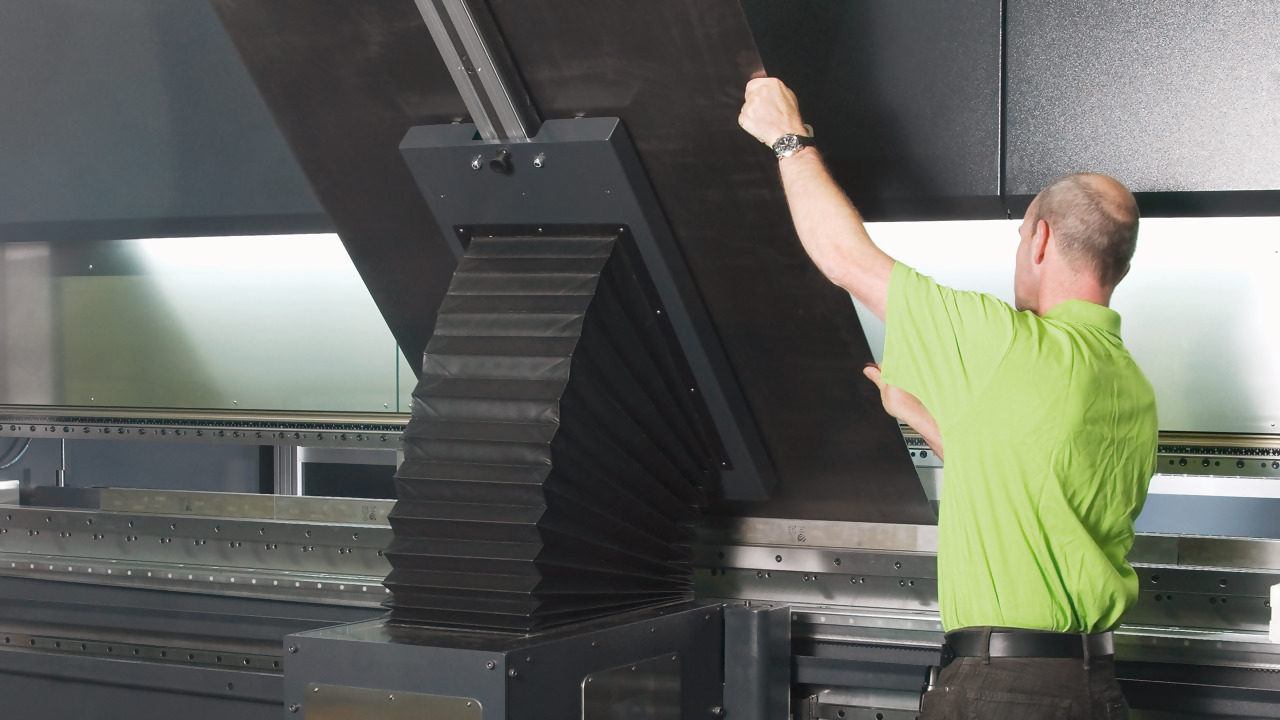

The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 150kg

E-Mate 2000
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 500kg

Materials Cupboard

Materials Cupboard
Materials cupboard on the machine. Storage facility for – for example – tools or documentation. No more wasting time searching for your tools.

Complete touch screen convenience

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 19” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
