SafanDarley E-Brake Premium 35-130T

Servo-electronic bending with an E for even bending

Full electric drive
More than 30% higher productivity
Up to 50% energy saving, low CO2 emissions
No harmful hydraulic oil
Noiseless operation
Full working length backgauge
User friendly touch screen control

Industry 4.0 Ready

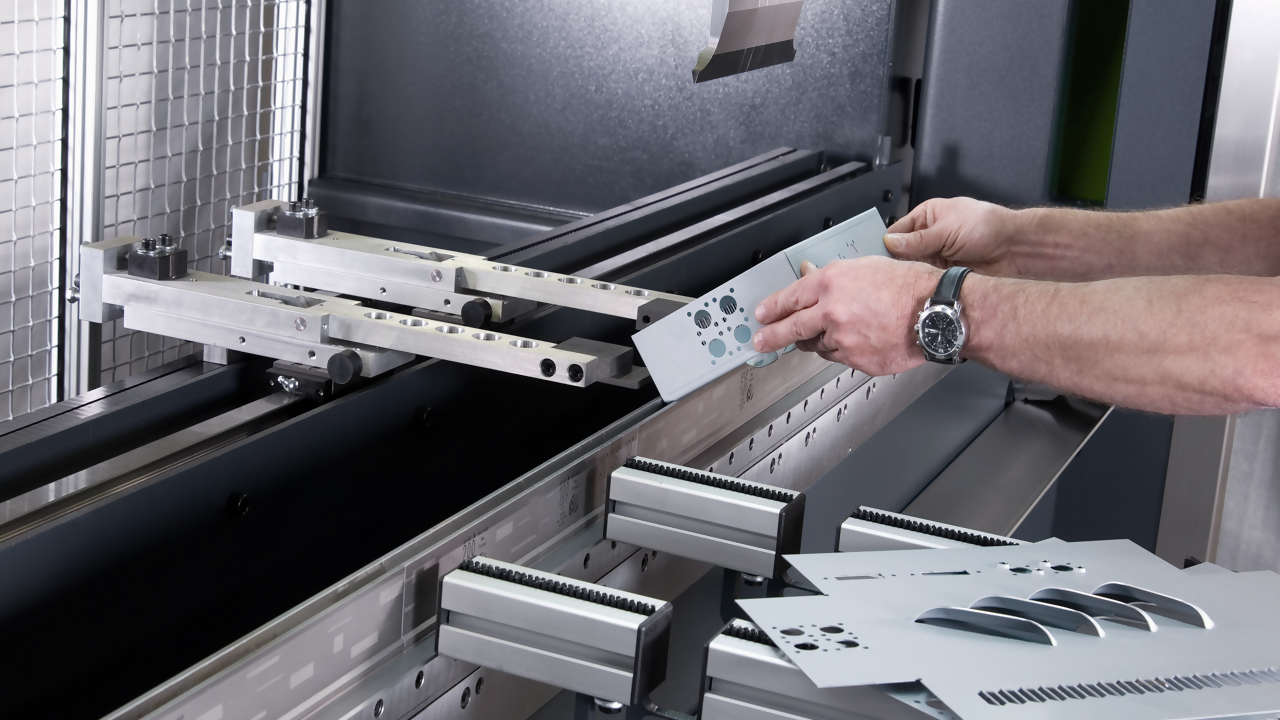

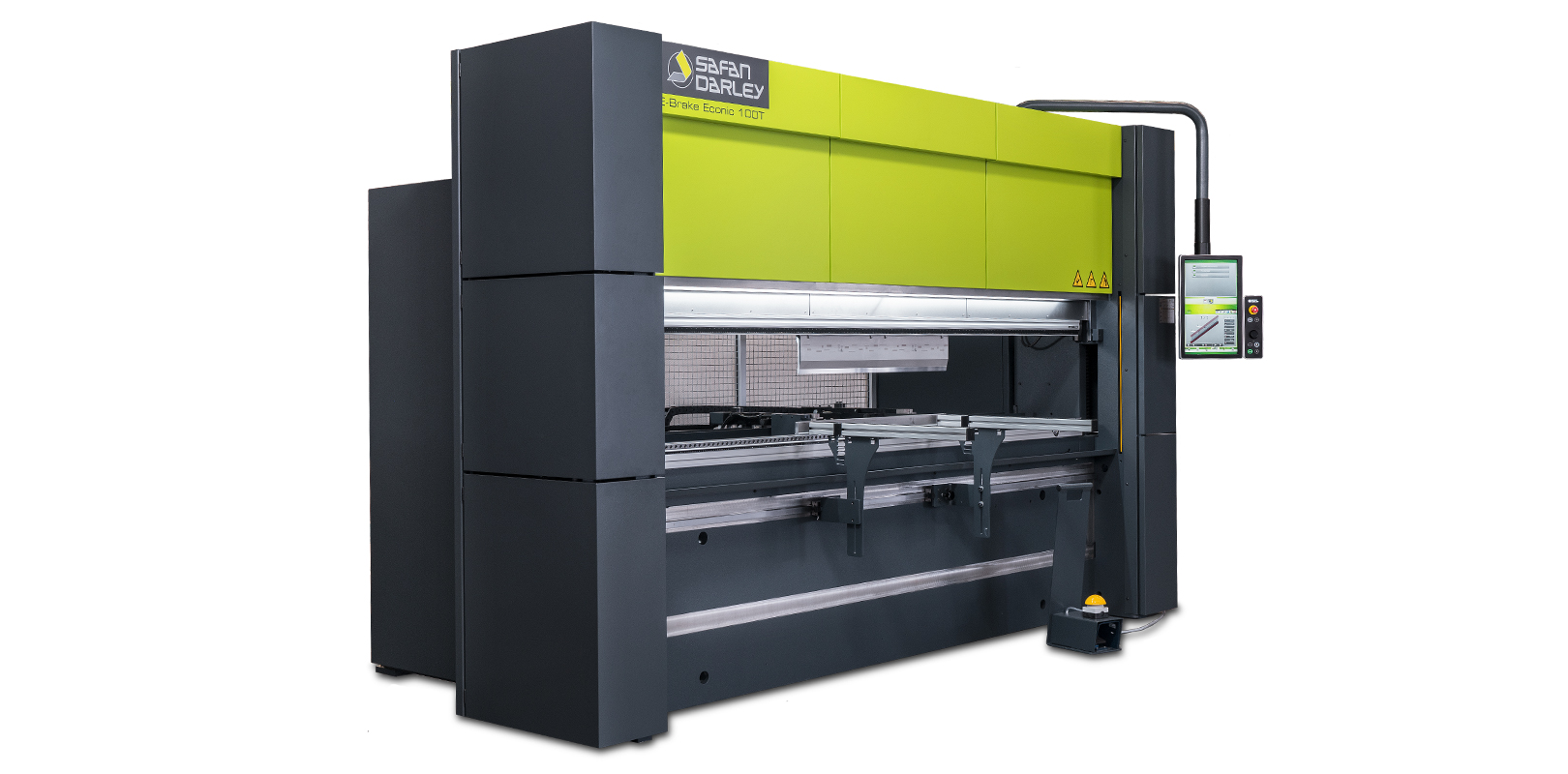

The fourth generation E-Brake adds important new advantages to the proven E-Brake technology. The E-Brake Econic is the successor of the current E-Brake series up to to 100T. An important feature is the new design, which greatly improves ergonomics. The control system is also equipped with a new design and is industry 4.0 ready, which means that your control system can communicate with external systems. In short, the new generation SafanDarley E-Brake means a next step in the E-volution in sheet metal working.

Specification

Model	35-1250	40-1600	50-2050	80-2550	100-3100	130-3100	130-4100
Tonnage	35	40	50	80	100	130	130
Working Length	1275	1530	2040	2550	3060	3060	4080
Maximum stroke in mm	300	300	300	300	300	300	300
Q-dimension in mm	590	590	590	590	590	590	590
Closing speed in mm/sec	180	180	160	90	75	110	110
Bending speed max. in mm/sec	20	20	20	20	20	20	20
Return speed in mm/sec	180	180	160	90	75	110	110
Motor power in kW	11	11	11	11	11	15	15

Standard Configuration

SafanDarley EC20 Touch Screen CNC press brake controls
Split Screen Controller. Moveable and height adjustable
CNC-controlled R- axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 2.5 mm)

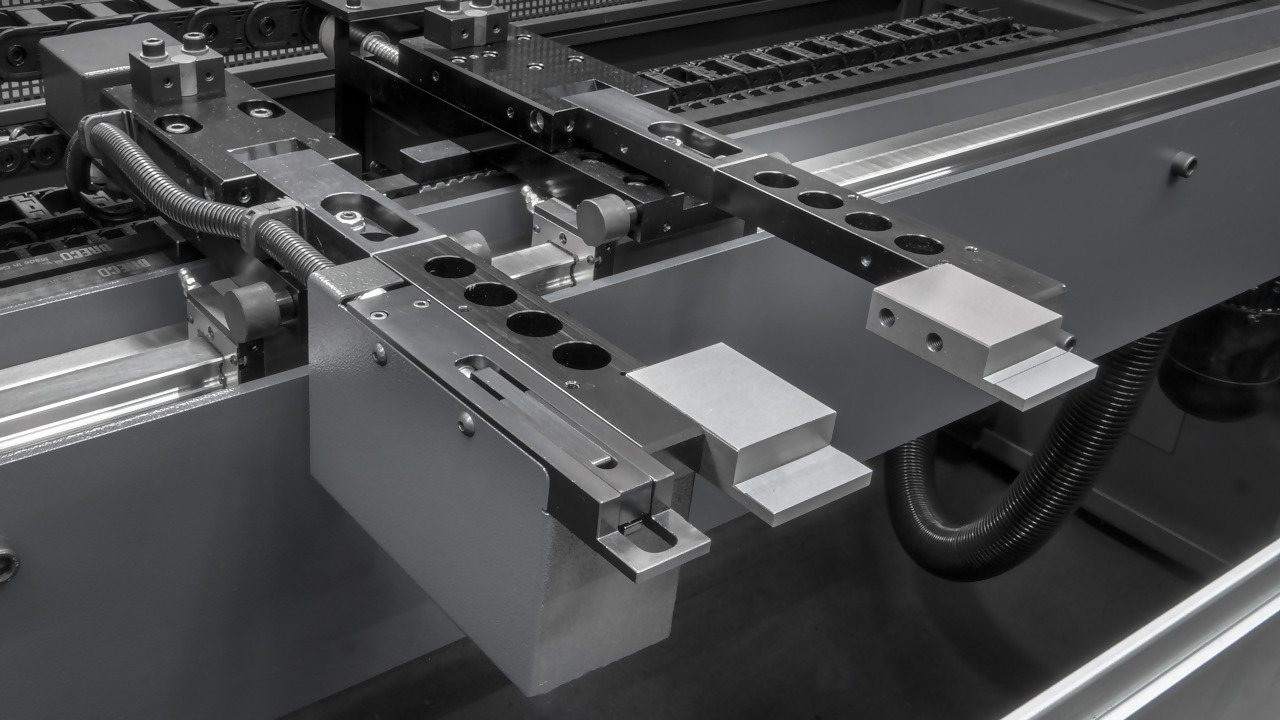

CNC-controlled back gauge (X-axis) with a wide range
Z1 and Z2-axis manually adjustable
NSCL II MC Pro tool mechanical clamping system
OB/S-3 lower tool tool mechanical clamping system
Daylight of 590 mm (Q-dimension)
2 support arms (300 mm in length)*
1 Hold to Run operating console
Programmable and integrated safety light guard*
Electrical installation for power supply 3/N/PE 50Hz 230/400V AC
Safety in conformance with CE*

Available Options

Control - EC20, Dual Display, EC30, EC40

EC20

EC30
The EC 30 control enables you to program in 3D.

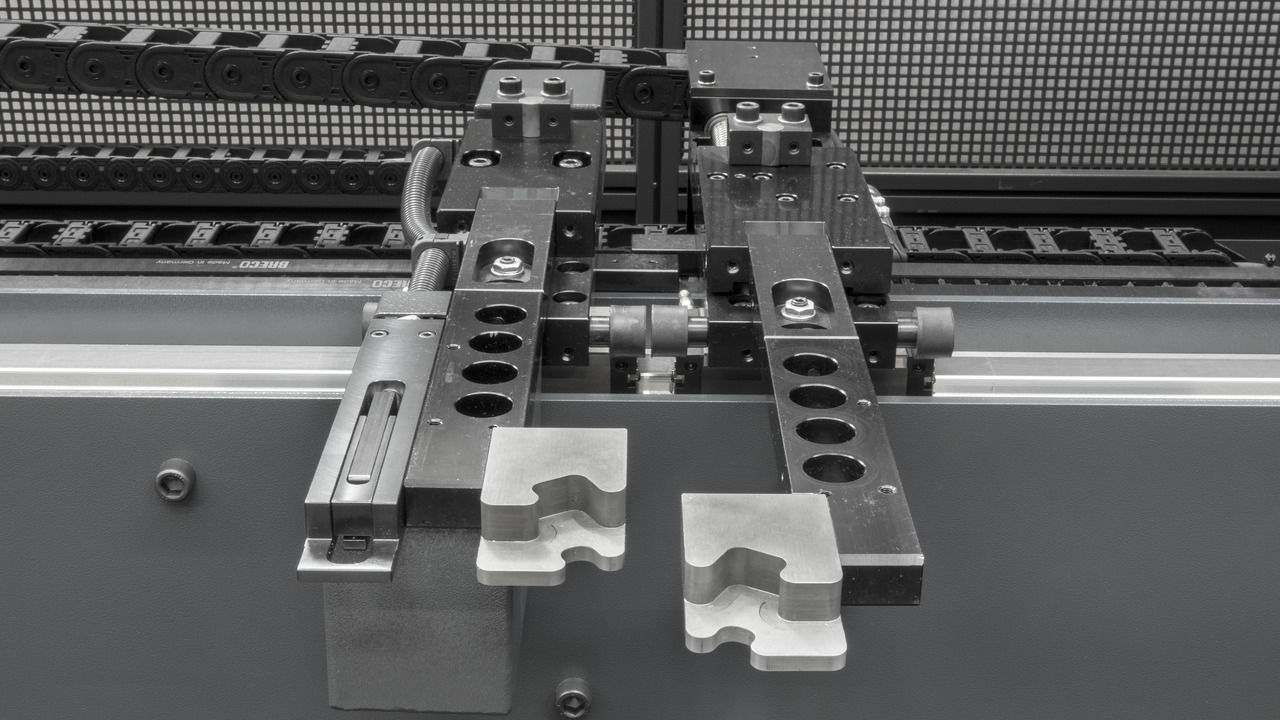

Axis / Backgauge System

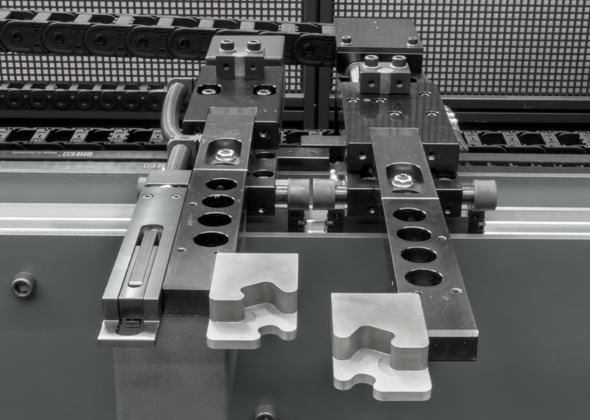

Back gauge System Z1+Z2 axis CNC controlled

Back gauge System Delta X CNC controlled

Q-Size

Q Size 650mm

Q Size 690mm
Offers even more freedom of choice in tools

Support Arms/ Sheet Supports

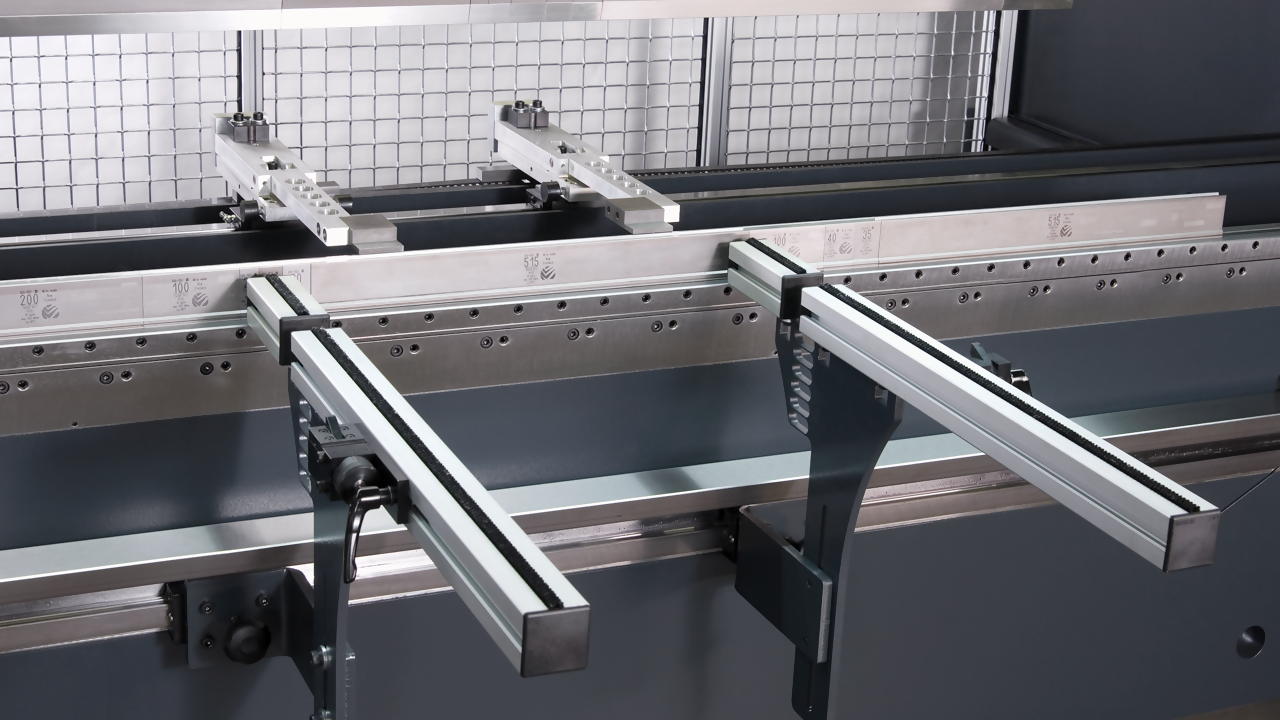

Fixed support arms
Support arms serve to support the plate material.

Fixed support arms can be moved
Fixed arms can be moved along the machine.

Fixed support arms movable and adjustable in height
Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed support arms pneumatic
Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.

Tooling System

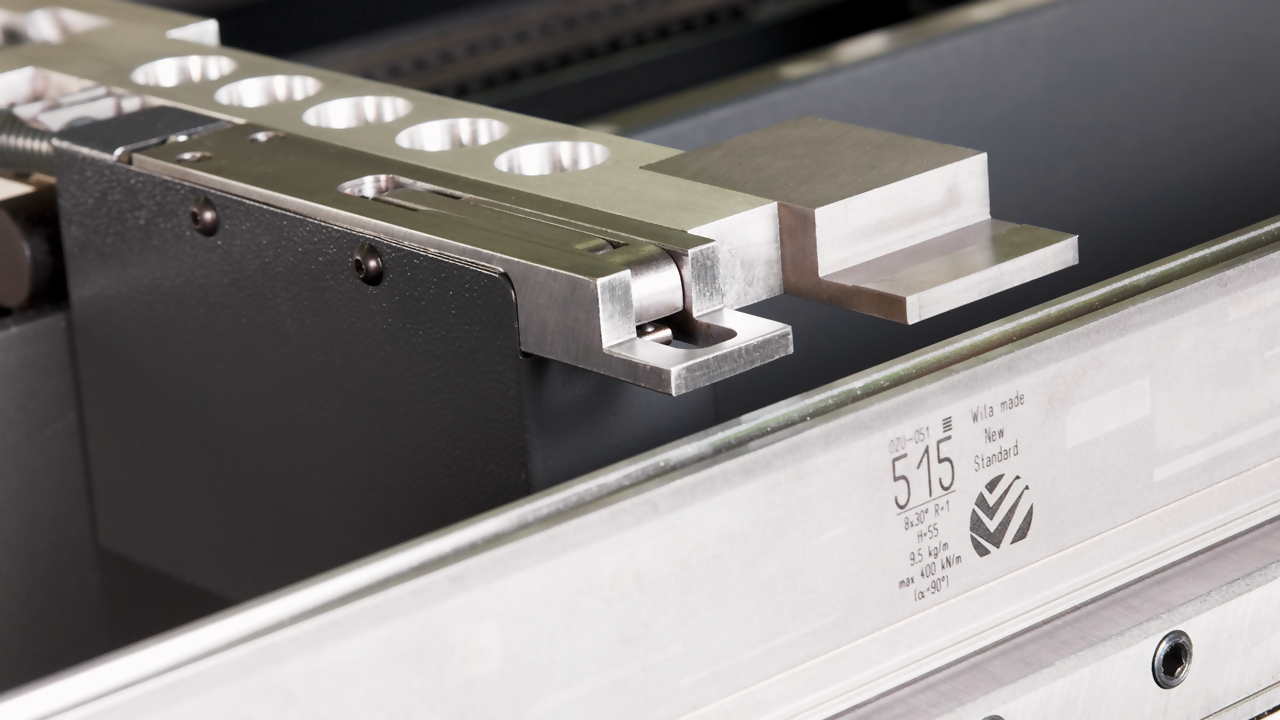

European Style
European Style clamping. Available as manual or pneumatic clamping.

Wila New Standard
New Standard tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools. Available as manual or hydraulic clamping.

Measurement

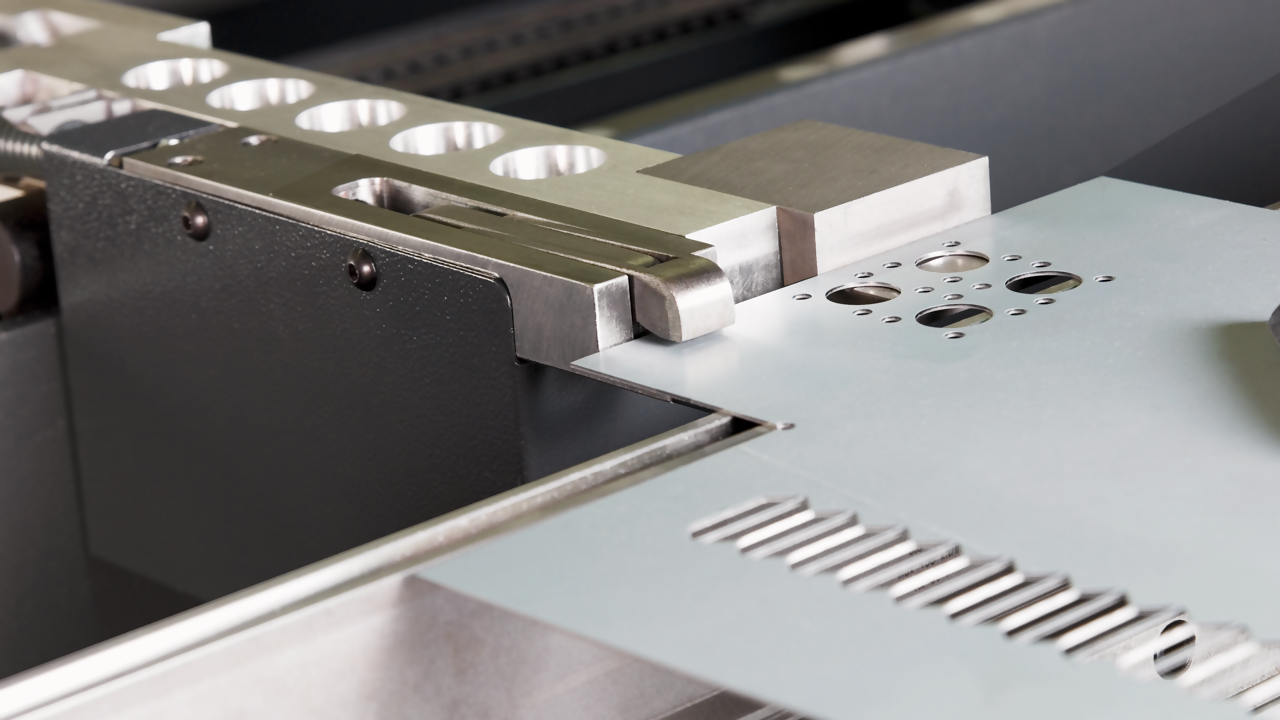

E-Bend S
Sheet thickness measuring. The system measures the plate thickness down to one hundredth. You can program exactly when measurements must be taken.

Bending Aid

E-Mate

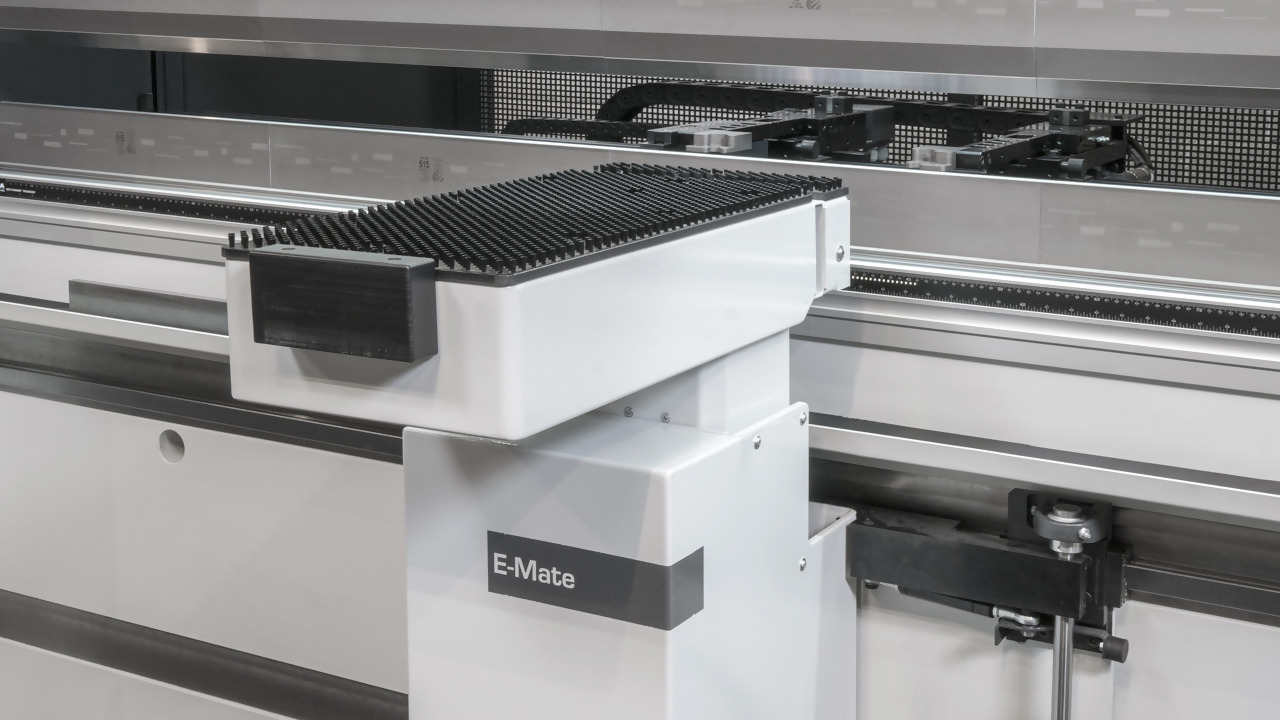

The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 30kg.

E-Mate Plus
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 150kg

Materials Cupboard

Materials Cupboard
Materials cupboard on the machine. Storage facility for – for example – tools or documentation. No more wasting time searching for your tools.

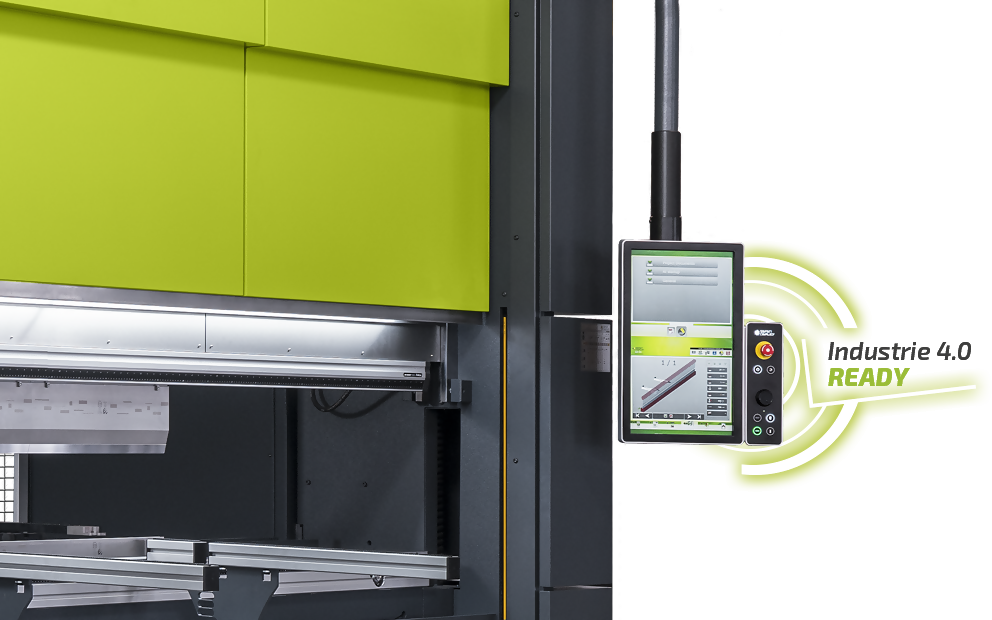

Complete touch screen convenience

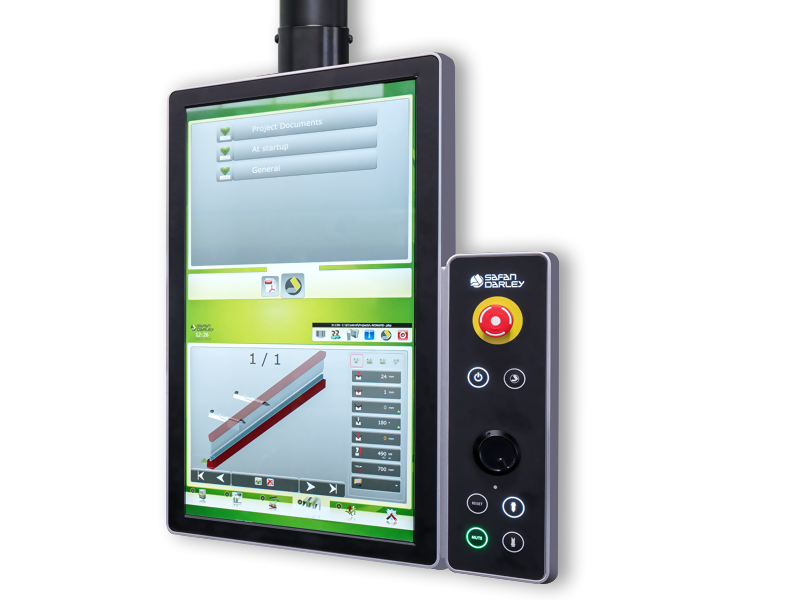

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 17” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.

The E-Brake Econic is equipped with a single screen with split screen. This makes it possible to run two applications on one screen and create a paperless working environment.
