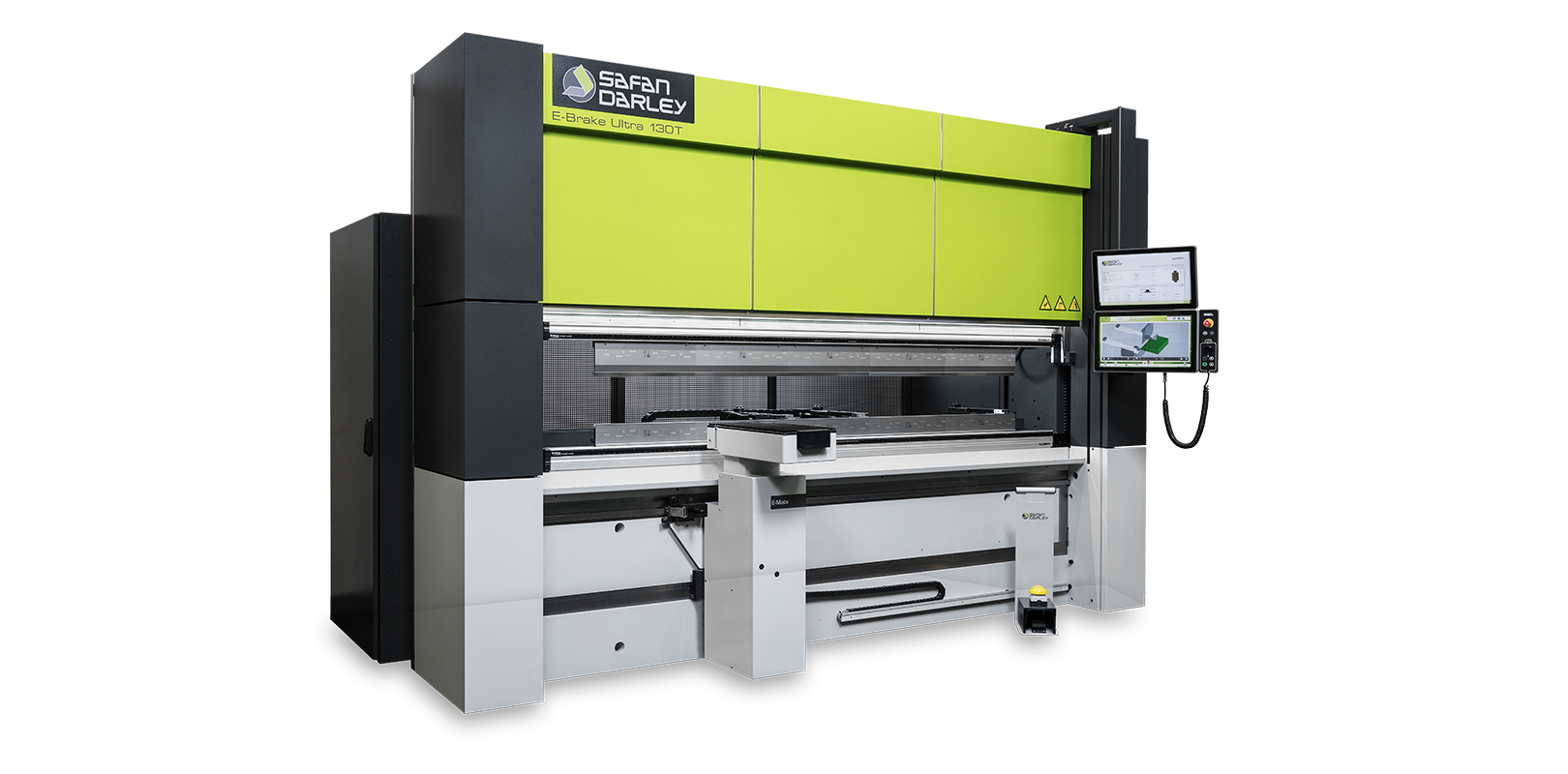

SafanDarley E-Brake Ultra 50-130T

Servo-electronic bending with an E for even bending

Full electric drive
More than 30% higher productivity
Up to 50% energy saving, low CO2 emissions
No harmful hydraulic oil
Noiseless operation
Full working length backgauge
User friendly touch screen control

Integrated safety

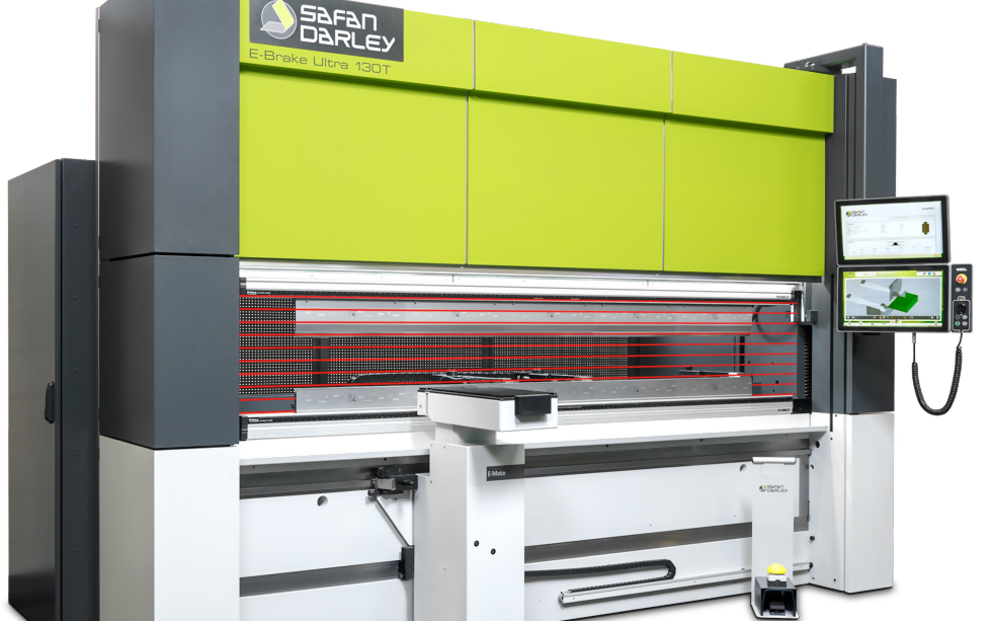

Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls. In addition, the SafanDarley E-Brake has an additional in-built safety provision. The application of a spring return means that the top beam will always move upwards in the event of a failure.

Specification

Model	50-2050	80-2550	100-3100	130-3100	130-4100
Tonnage	50	80	100	130	130
Working Length	2050	2550	3100	3100	4100
Maximum stroke in mm	300	300	300	300	300
Q-dimension in mm	590	590	590	590	590
Closing speed in mm/sec	160	90	75	130	130
Bending speed max. in mm/sec	20	20	20	20	20
Return speed in mm/sec	160	90	75	130	110
Motor power in kW	11	11	11	15	15

Standard Configuration

SafanDarley EC20 Touch Screen CNC press brake controls
Dual Screen Controller. Moveable and height adjustable
CNC-controlled R- axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 2.5 mm)
CNC-controlled back gauge (X-axis) with a wide range
Z1 and Z2-axis manually adjustable
Backgauge with 2 adjustable and hinged fingers
NSCL II MC Premium tool mechanical clamping system
NSCR-II MC Premium CNC controlled crowning table
Daylight of 590 mm (Q-dimension)
2 support arms (300 mm in length)*
1 Hold to Run operating console
Programmable and integrated safety light guard*
Electrical installation for power supply 3/N/PE 50Hz 230/400V AC
Safety in conformance with CE*

Available Options

Control - EC20, Dual Display, EC30, EC40

EC30
The EC 30 control enables you to program in 3D.

Axis / Backgauge System

Back gauge System Z1+Z2 axis CNC controlled

Back gauge System Delta X CNC controlled

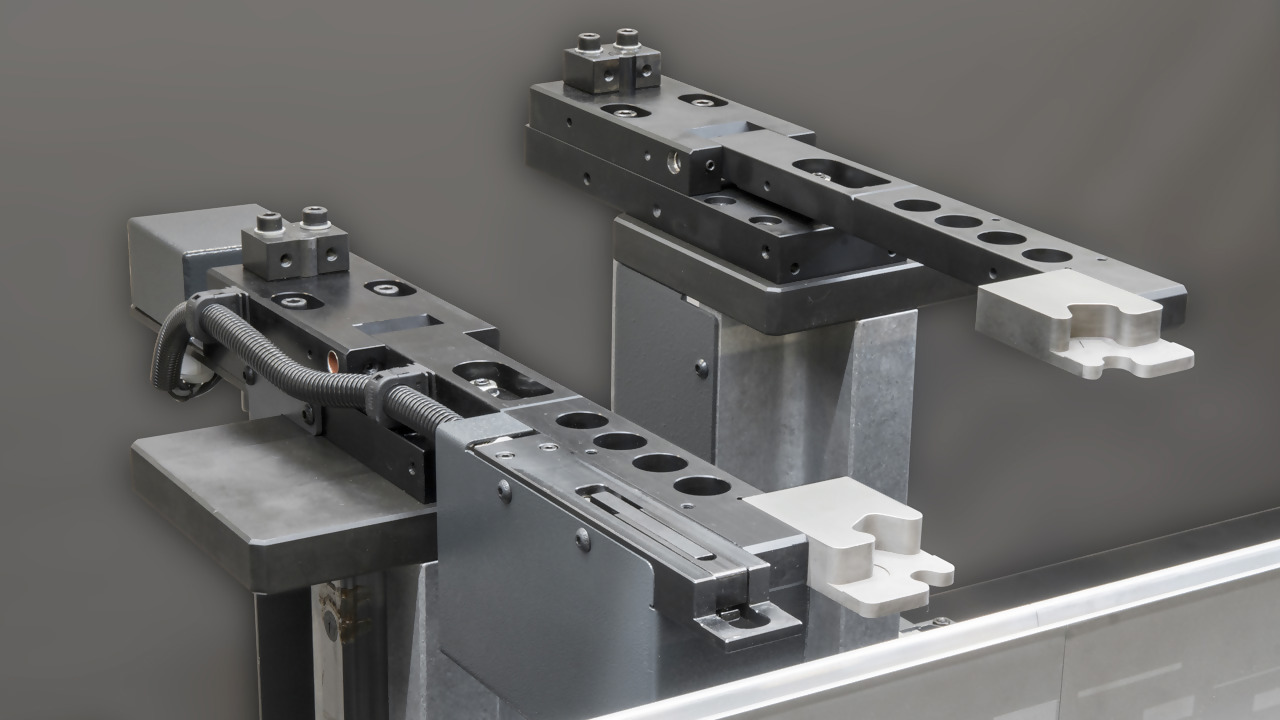

Back gauge system 3D
Back gauge systems that serve as a gauge for various plate material products. The choice of back gauge systems depending on the complexity of the product to be bend.

Q-Size

Q Size 650mm

Q Size 690mm
Offers even more freedom of choice in tools

Support Arms/ Sheet Supports

Fixed support arms
Support arms serve to support the plate material.

Fixed support arms can be moved
Fixed arms can be moved along the machine.

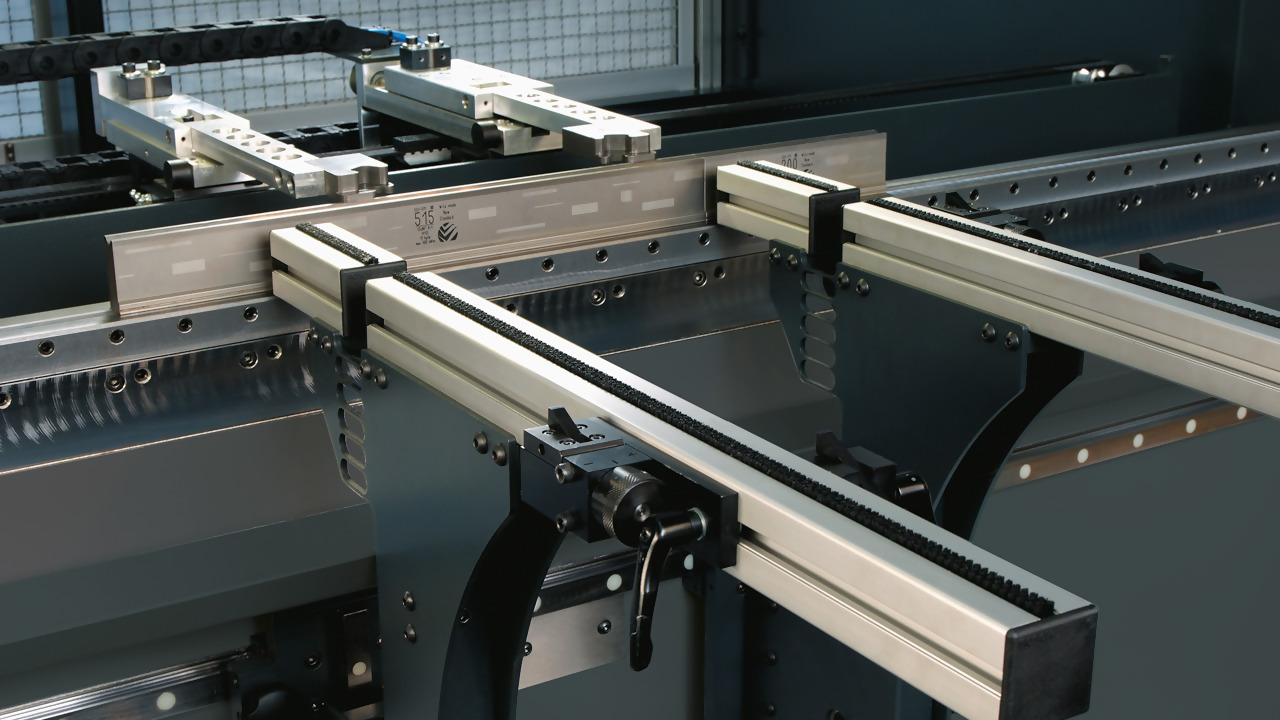

Fixed support arms movable and adjustable in height
Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed support arms pneumatic
Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.

Tooling System

European Style
European Style clamping. Available as manual or pneumatic clamping.

Wila New Standard
New Standard tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools. Available as manual or hydraulic clamping.

Measurement

E-Bend L Blue
The latest technology in laser angle measuring. The system consists of two laser sensors on each side of the table, which are CNC controlled through the control system. The system continuously displays and corrects the position of the Y axis on the basis of the actual angle of the product, thus guaranteeing that the end product has the highest degree of corner precision.

E-Bend S
Sheet thickness measuring. The system measures the plate thickness down to one hundredth. You can program exactly when measurements must be taken.

Bending Aid

E-Mate
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 30kg.

E-Mate Plus
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 150kg

E-Mate 2000
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 500kg

Materials Cupboard

Materials Cupboard

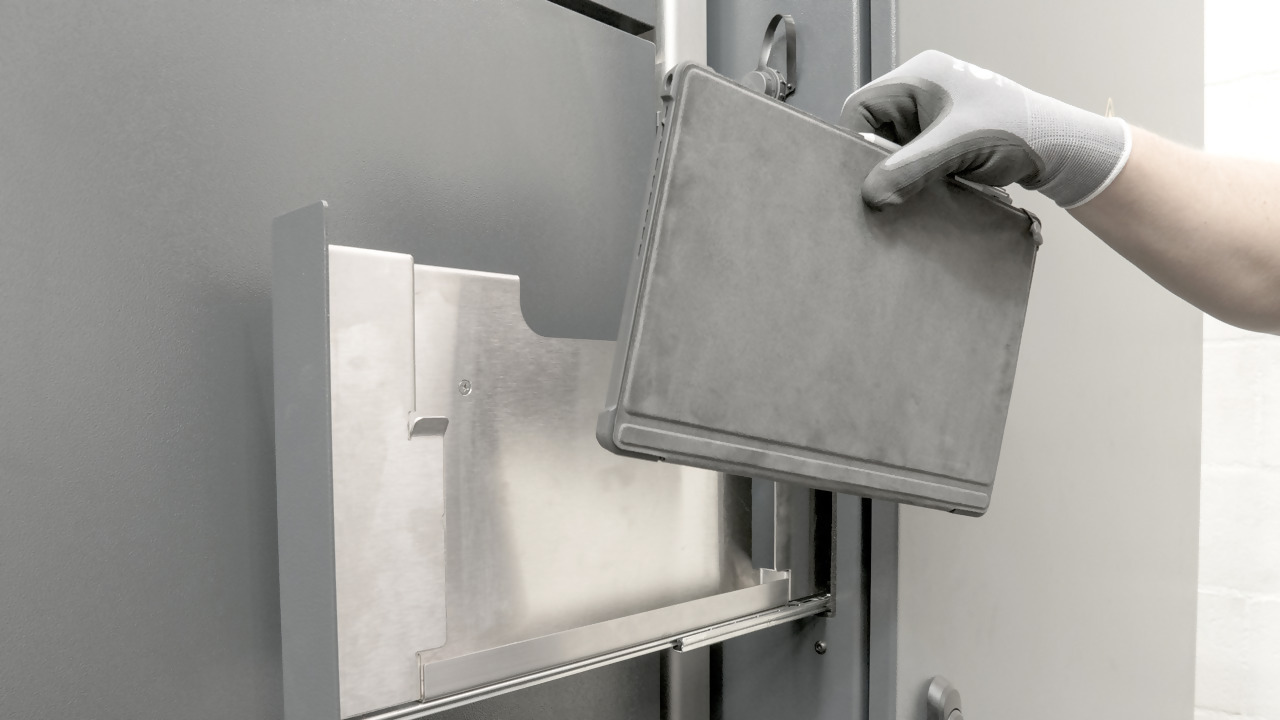

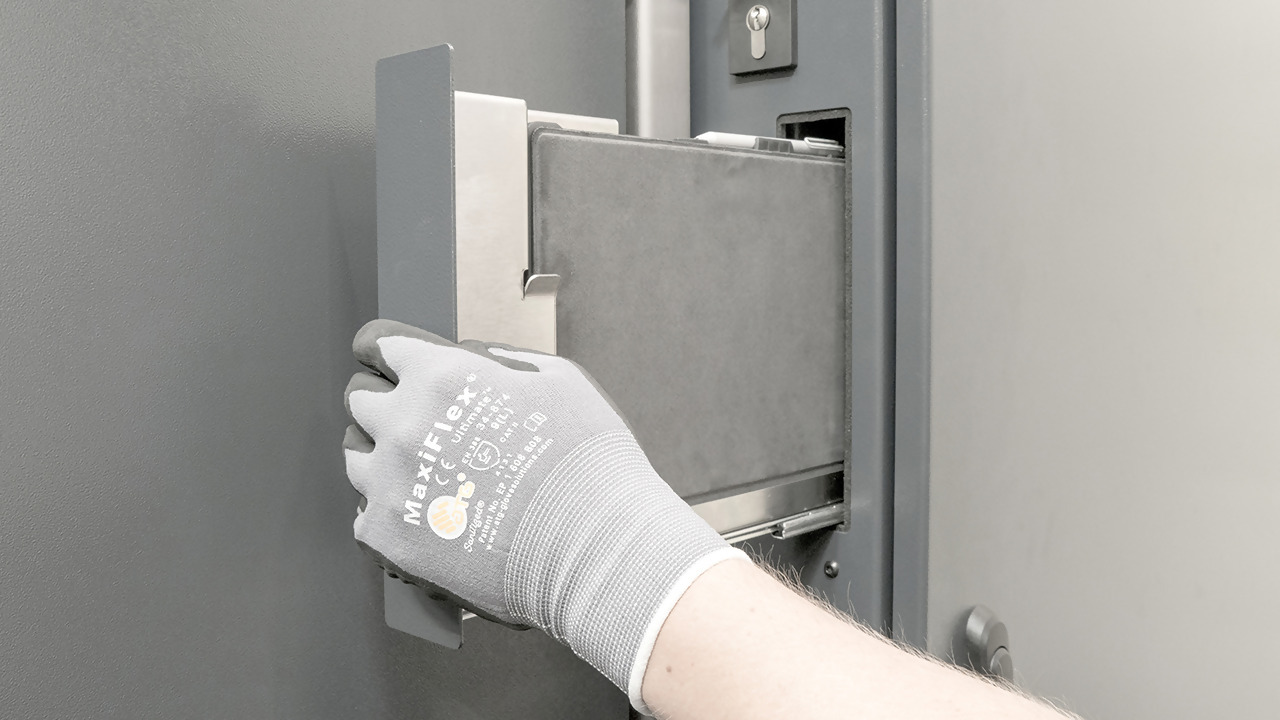

Materials cupboard on the machine. Storage facility for – for example – tools or documentation. No more wasting time searching for your tools.

Complete touch screen convenience

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 19” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.

Each E-Brake Ultra has as standard, a double screen control which is yet another step towards a paperless working environment.
