SafanDarley R-Brake: the flexible bending cell

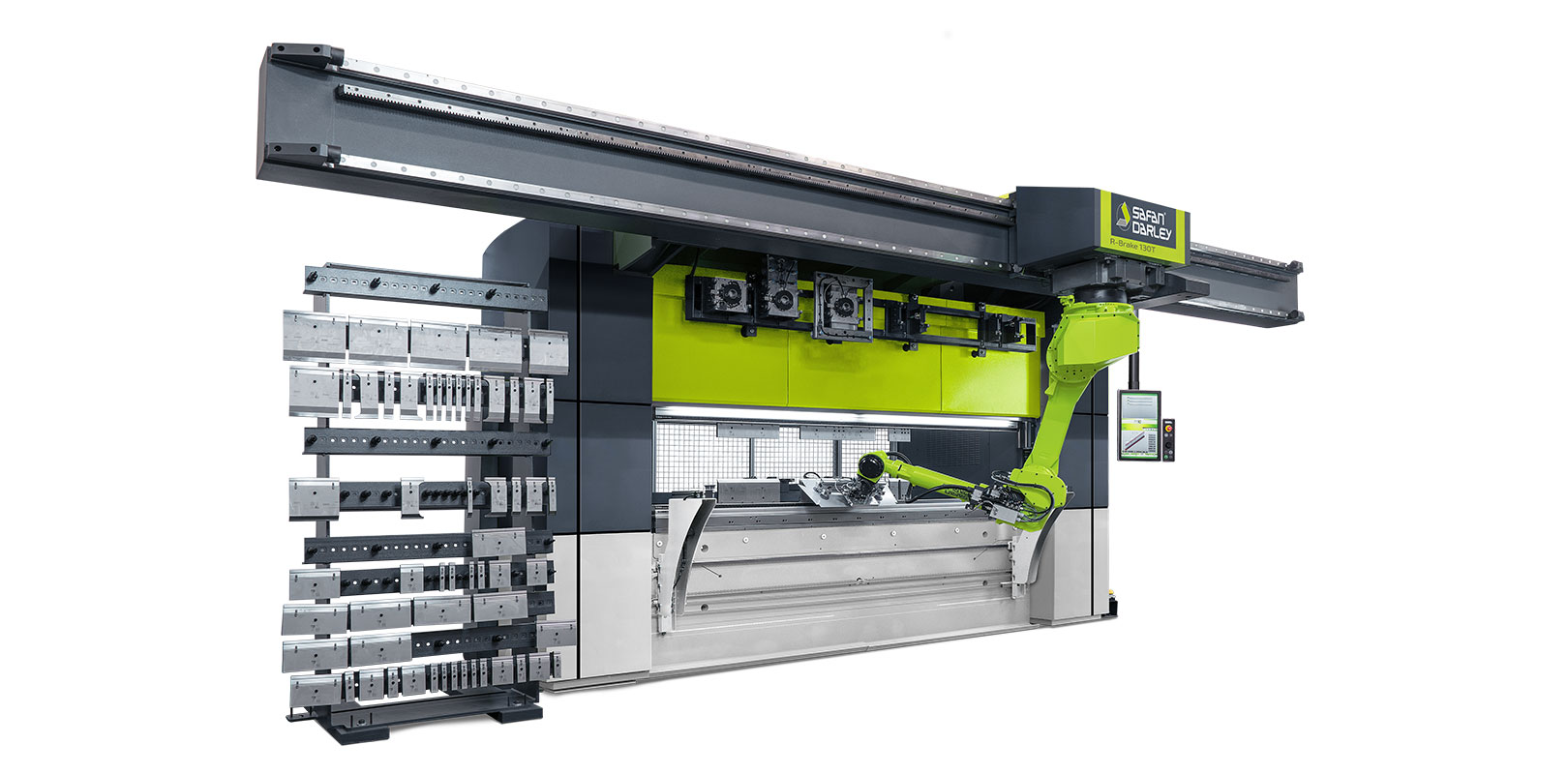

The SafanDarley R-Brake is a revolutionary bending-cell concept based on the SafanDarley E-Brake press brake. For the SafanDarley R-Brake, the press brake and the robot have been integrated into a single system. The robotic arm moves horizontally along a 6-metre long traverse at the top of the press brake. A feat of bending cell automation that ensures that the floor in front of the press brake is free for positioning sheet-feed and -discharge tables.

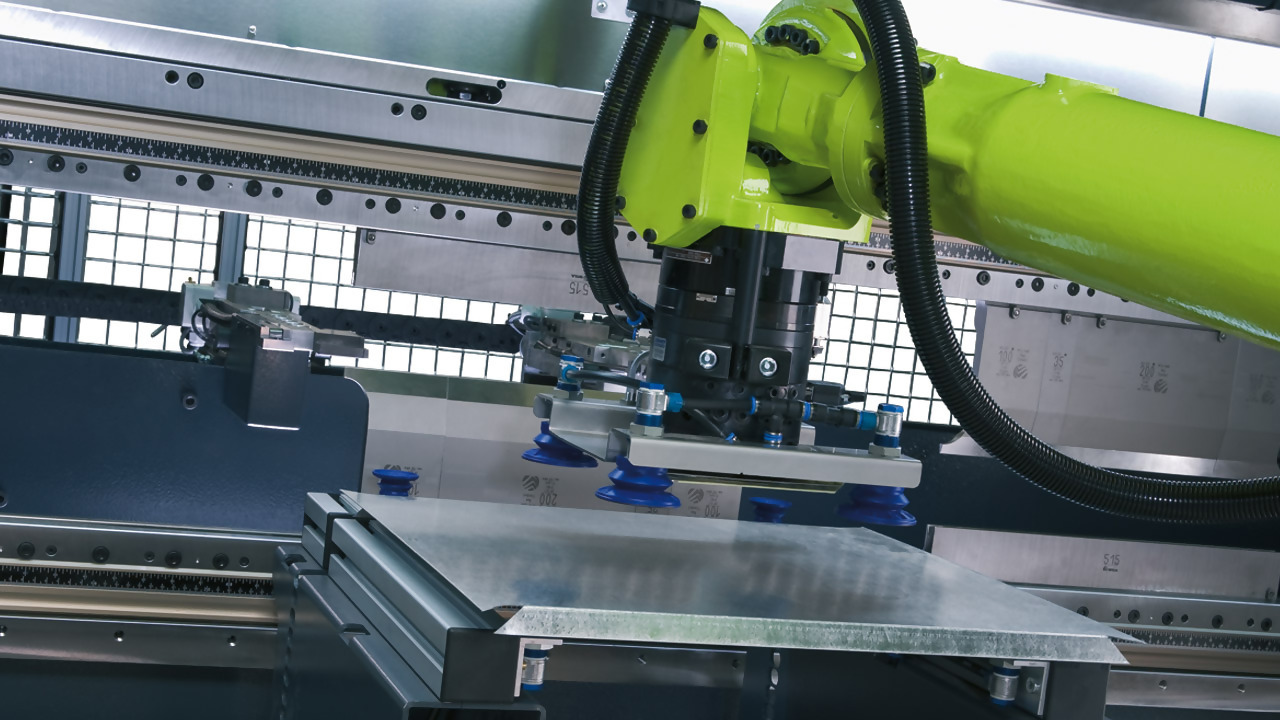

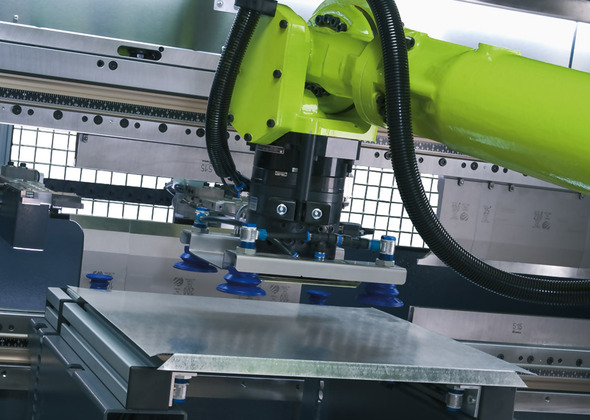

Vision system

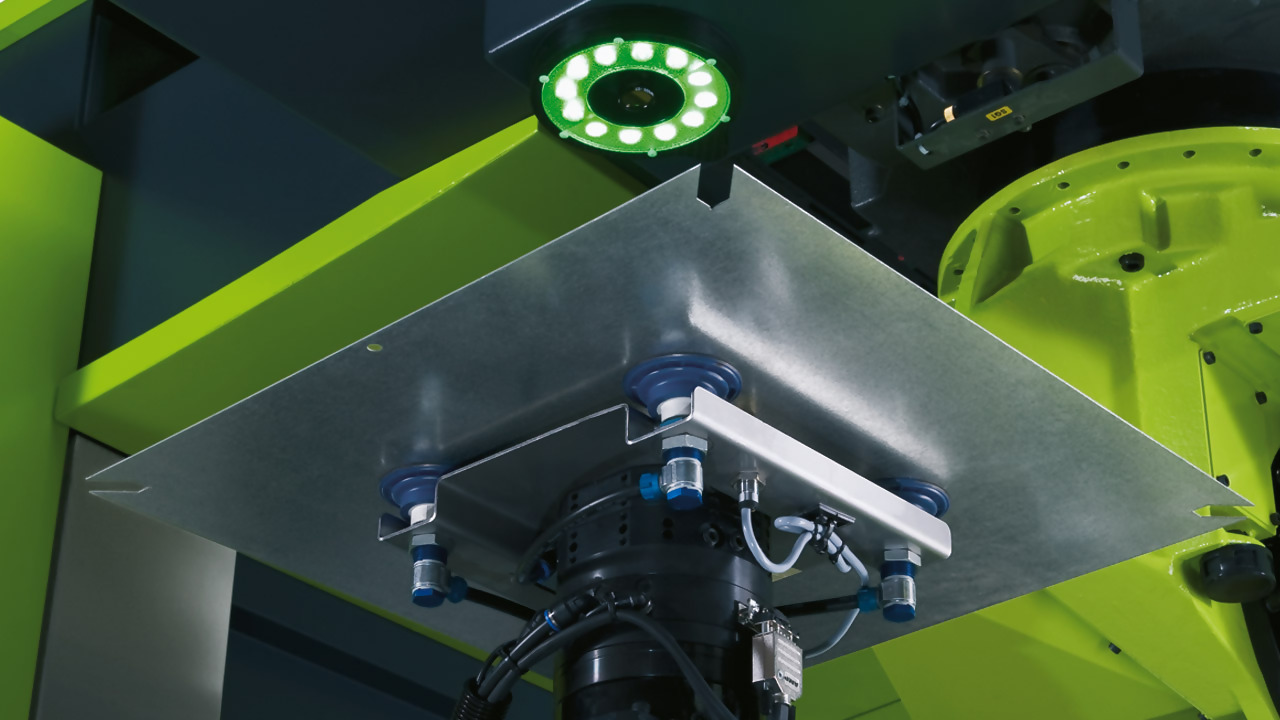

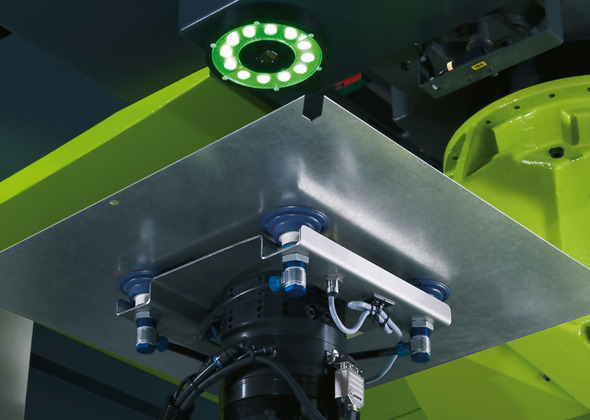

The machine is standard equipped with a positioning table but optionally the basic model can be equipped with a vision system (pat. pending) for defining the zero position of the sheet. Double sheet detection is safeguarded by an optional sheet weight sensor which will be mounted in the gripper.
Technical Specifications
| Model | 130-3100/50 | 130-3100/70 | 130-3100/80 |
|---|---|---|---|
| Tonnage | 130 | 130 | 130 |
| Working Length | 3100 | 3100 | 3100 |
| Maximum stroke in mm | 300 | 300 | 300 |
| Q-dimension in mm | 790 | 790 | 790 |
| Closing speed in mm/sec | 130 | 130 | 130 |
| Bending speed max. in mm/sec | 20 | 20 | 10 |
| Return speed in mm/sec | 130 | 130 | 130 |
| Motor power in kW | 20 | 20 | 22.5 |
- SafanDarley R-Brake 130T-3100
- Pressure force 130 tons, working length 3100 mm
- Integrated robotic arm with 50 kg capacity, optionally 70 kg or 80kg
- Traverse length 6 metres.
- All the advantages of SafanDarley E-Brake technology
- Comes standard with a zero table
- Simple and fast changeover to manual bending
- Optional Vision system
- Optional traverse extension to 10 metres
- Optional double-sheet detection by means of a weight sensor
- Optional pre-positioner for sheet feed
- Optional off-line programming with SafanDarley R
Complete touch screen convenience
The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 19” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
