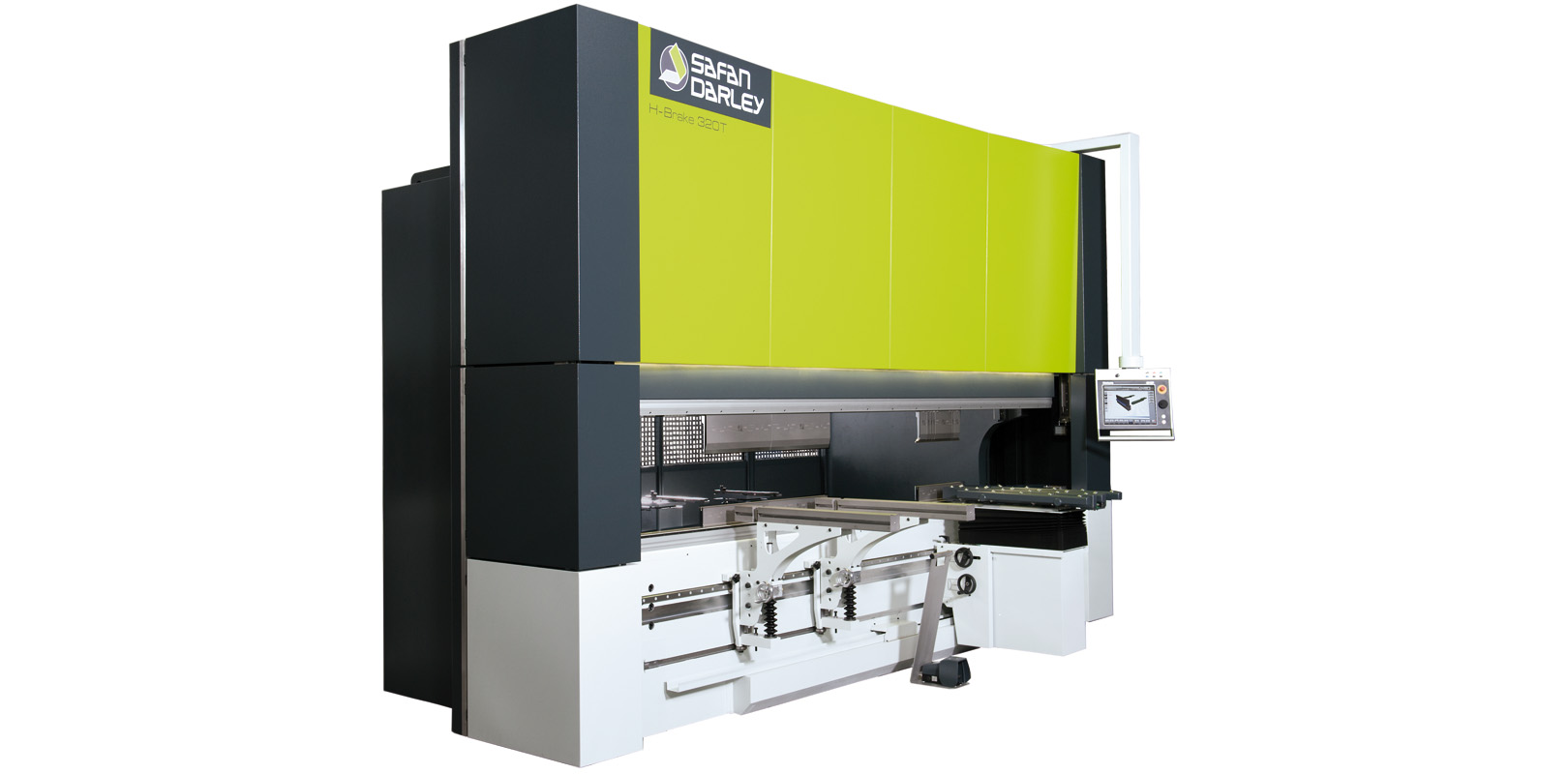

SafanDarley H-Brake 175-400T

SafanDarley H-Brake, the highest precision and productivity levels

High-end press brake with Y-Axis repeat accuracy (0,01mm)

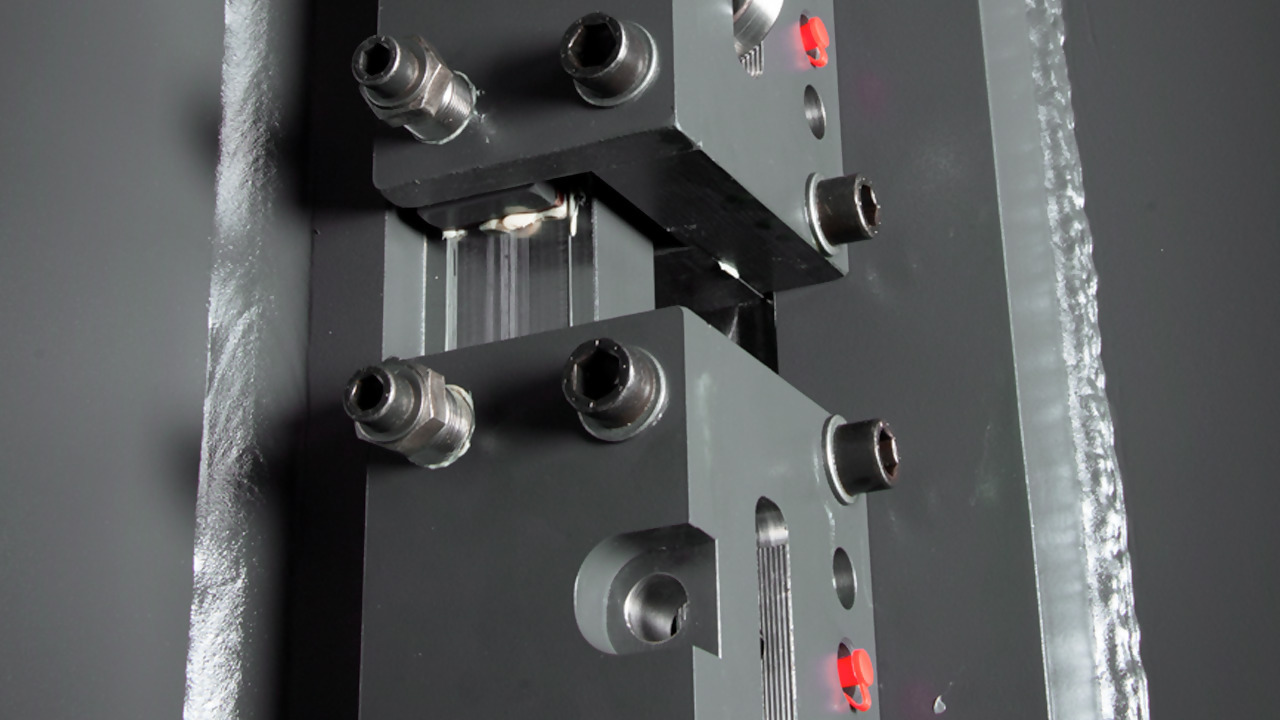

Robust & durable construction
Quick setup and fast cycle times
High level of freedom with 2 different types of control types

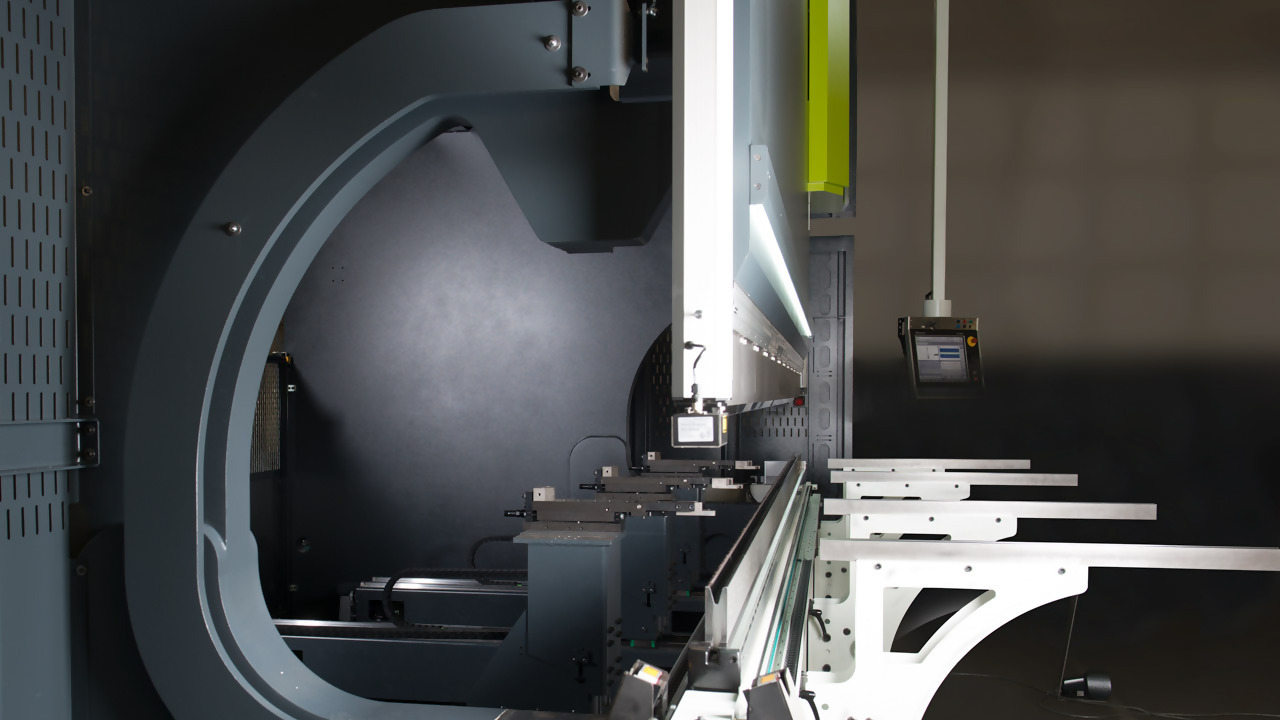

Flexible throat & Q dimensions
Custom made solutions
Versatile bending aids
A large variety of tonnages and lengths
Wide range of flexible tandem solutions
The first bend is always perfect ( within 0,5°) with the E-bend L

Integrated safety

Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls. In addition, the SafanDarley E-Brake has an additional in-built safety provision.

Specification

Model	175.31/25	175.37/32	175.42/37	230.31/27	230.37/32	230.42/37	320.31/27
Tonnage	175	175	175	230	230	230	230
Working Length	3100	3700	4200	3100	3700	4200	3100
Distance between the side frames	2740	3250	3760	2740	3250	3760	2740
Maximum stroke in mm	300	300	300	360	360	360	360
Q-dimension in mm	575-675	575-675	575-675	650-750	650-750	650-750	650-750
Closing speed in mm/sec	200	200	200	120	120	120	120
Bending speed max. in mm/sec	10	10	10	10	10	10	8
Return speed in mm/sec	150	150	150	120	120	120	120
Motor power in kW	15	15	15	18.5	18.5	18.5	30

Model	320.37/32	320.42/37	320.51/43	320.62/51	400.42/37	400.51/43	400.62/51
Tonnage	320	320	320	320	400	400	400
Working Length	3700	4200	5100	6200	4200	5100	6200
Distance between the side frames	3250	3720	4360	5100	3760	4360	5100
Maximum stroke in mm	360	360	360	360	360	360	360
Q-dimension in mm	650-750	650-750	650-750	650-750	650-750	650-750	650-750
Closing speed in mm/sec	120	120	120	120	65	65	65
Bending speed max. in mm/sec	8	8	8	8	5	5	5
Return speed in mm/sec	120	120	120	120	70	70	70
Motor power in kW	30	30	30	30	37	37	37

Standard Configuration

Delem DA 66T 2D or E-Control EC20 controls
Controls mounted on a swivelling arm on the right side of the machine
Y1/Y2 axis are CNC-powered
X axis is CNC-powered
R axis is CNC-powered
Z1 and Z2 axis are controlled manually
Wila NSCL-II Premium top tool adaptor equipped with mechanical clamping, with a maximum load of 250T/mtr top-bearing and 300 T/mtr shoulder-bearing and CNC deep-hardened tool clamping
Wila NSCR-II Premium CNC-powered crowning using mechanical clamping, CNC deep-hardened tool clamping, maximum load 300 T/mtr, Tx/Ty alignment
2 support arms (300mm)

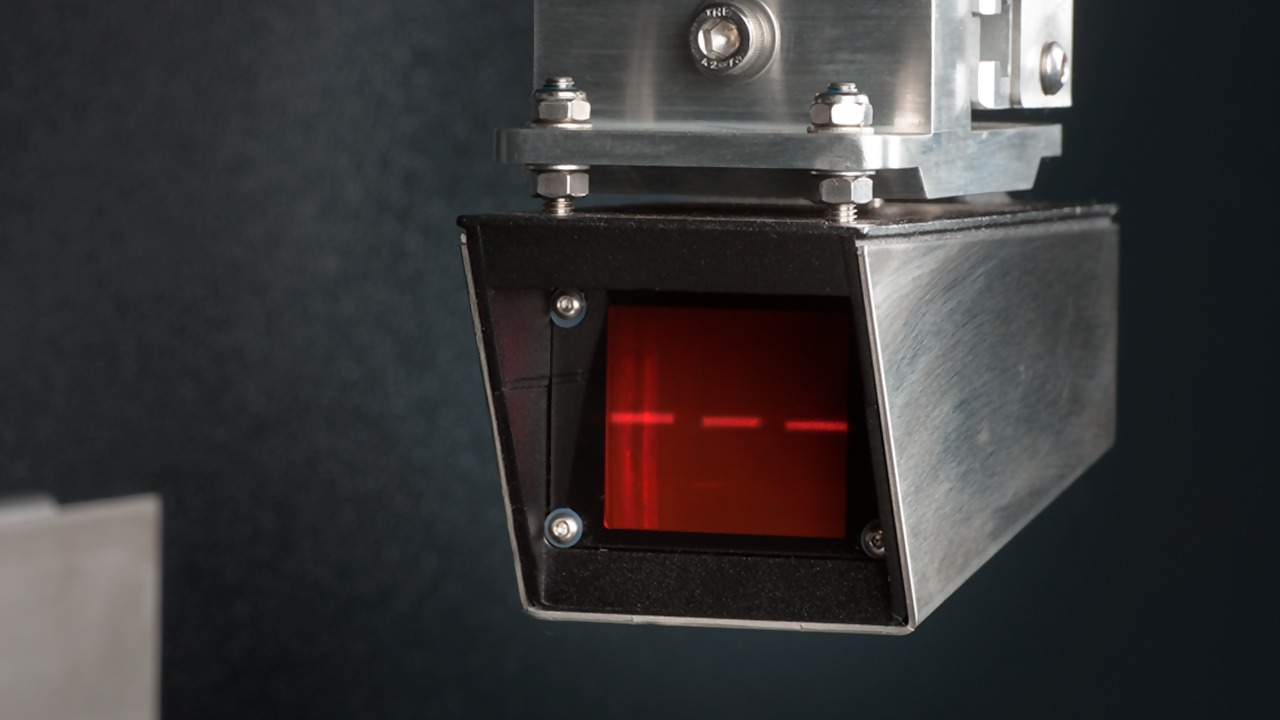

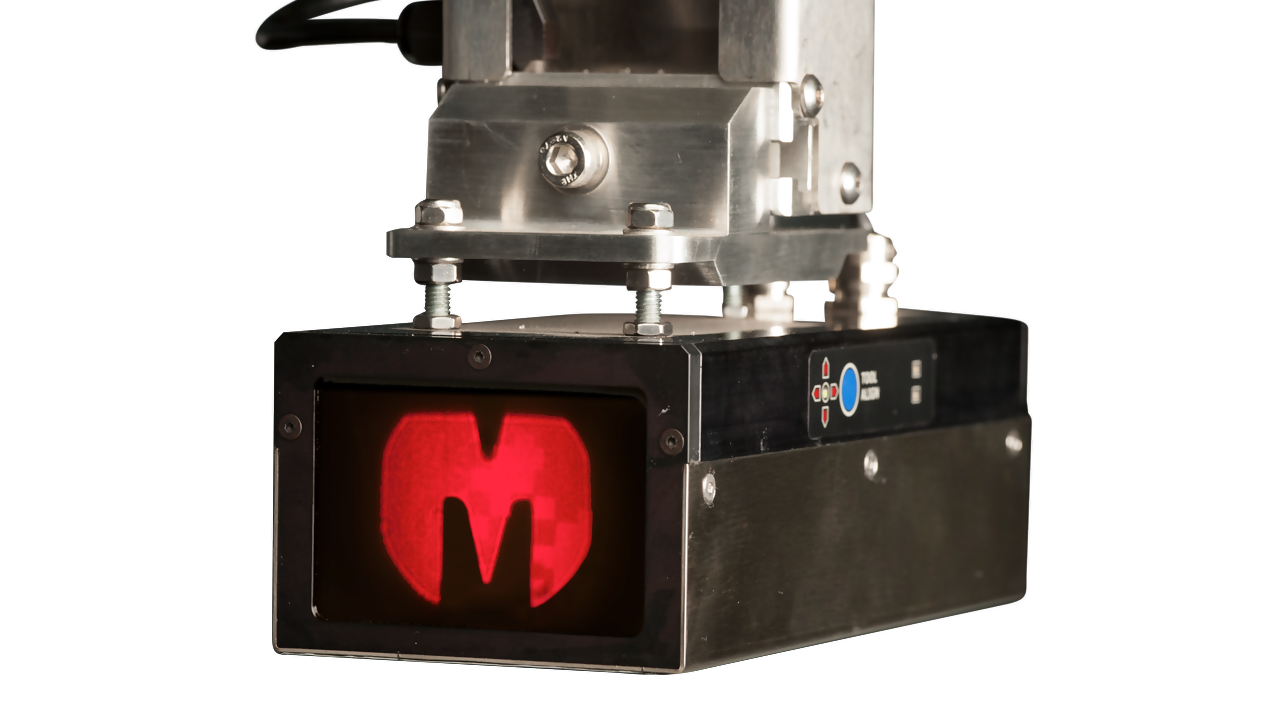

LazerSafe light beam protection, type LZS-004 (Delem)
Programmable and integrated safety light screen (E-Control)
Foot pedal including “Hold To Run”-function
Work area lighting on the front and rear side of the machine
Electronic installation of mains connection 3/N/PE 50 Hz 230/400 VAC
Machine is designed in accordance with the prevailing CE standards

Available Options

Control - EC20, Dual Display, EC30

EC20

Dual Display
By working with a double display, a paperless working environment is created.

EC30
The EC 30 control enables you to programme in 3D.

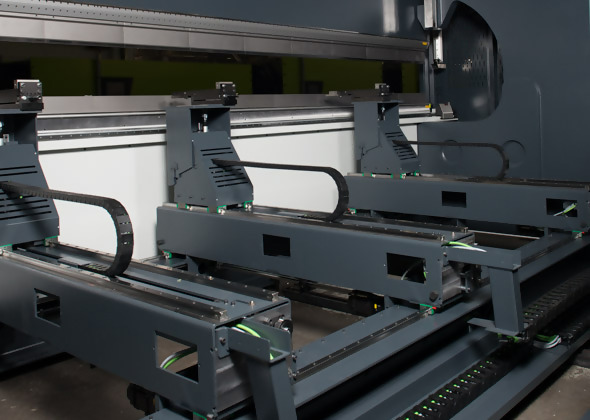

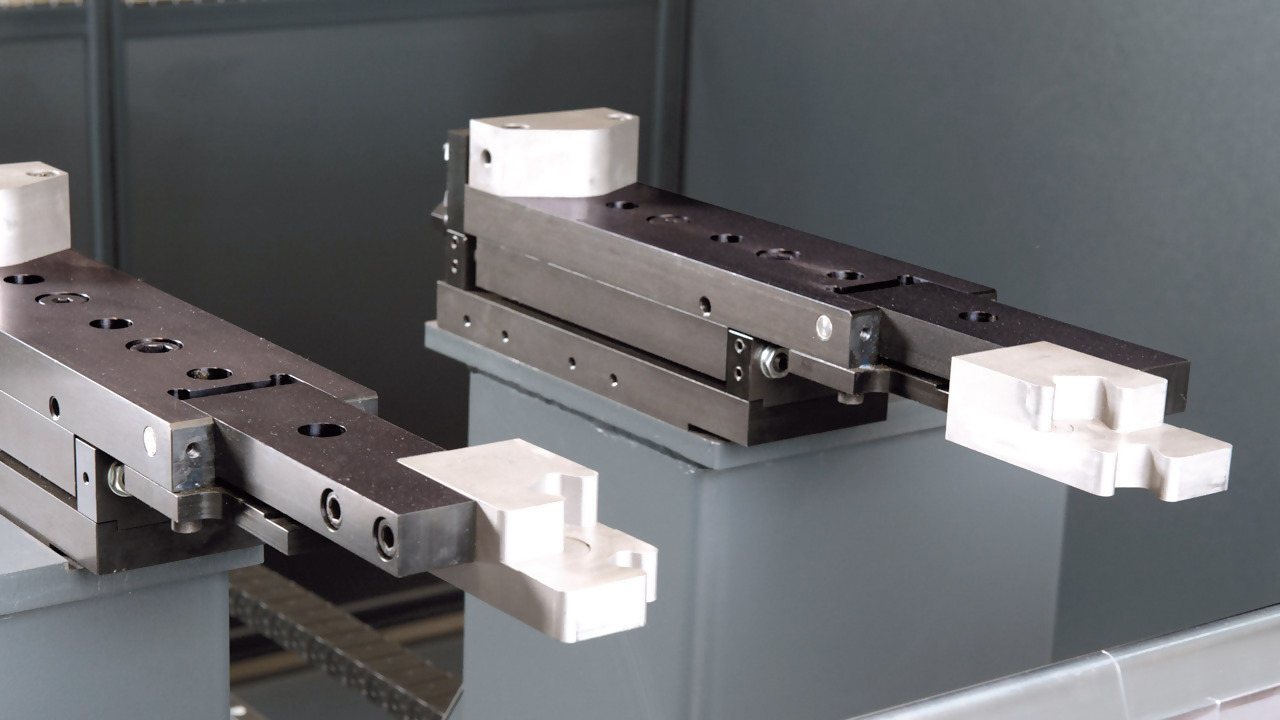

Axis / Backgauge System

Back gauge system that serves as a gauge for various plate material products. Choice of back gauge systems depending on the complexity of the product to be bend.

Back gauge System Z1+Z2 axis CNC controlled

Back gauge System Delta X CNC controlled

Back gauge System 3D

Q Size

Offers even more freedom of choice in tools.

Q Size 650mm

Q Size 690mm

Support Arms/ Sheet Supports

Fixed support arms
Support arms serve to support the plate material.

Fixed support arms can be moved
Fixed arms can be moved along the machine.

Fixed support arms movable and adjustable in height
Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed support arms pneumatic
Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.

Tooling System

European Style
European Style clamping. Available as manual or pneumatic clamping.

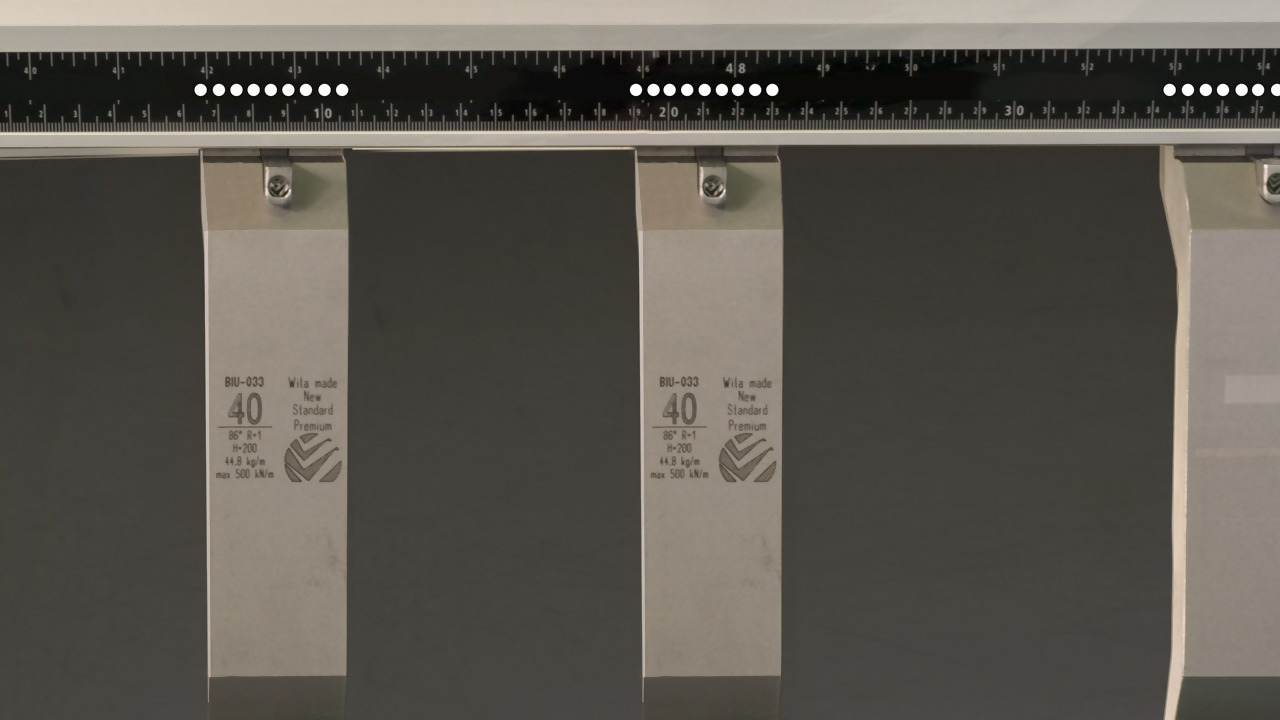

Wila New Standard
New Standard tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools. Available as manual or hydraulic clamping.

Measurement

E-Bend L Blue
The latest technology in laser angle measuring. The system consists of two laser sensors on each side of the table, which are CNC controlled through the control system. The system continuously displays and corrects the position of the Y axis on the basis of the actual angle of the product, thus guaranteeing that the end product has the highest degree of corner precision.

E-Bend S
Sheet thickness measuring. The system measures the plate thickness down to one hundredth. You can program exactly when measurements must be taken.

Bending Aid

E-Mate
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 30kg.

E-Mate Plus
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 150kg

E-Mate 2000
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid. Material up to 500kg

Parking Station

Parking Station Left
Parking station on the left of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

Parking Station Right
Parking station on the right of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

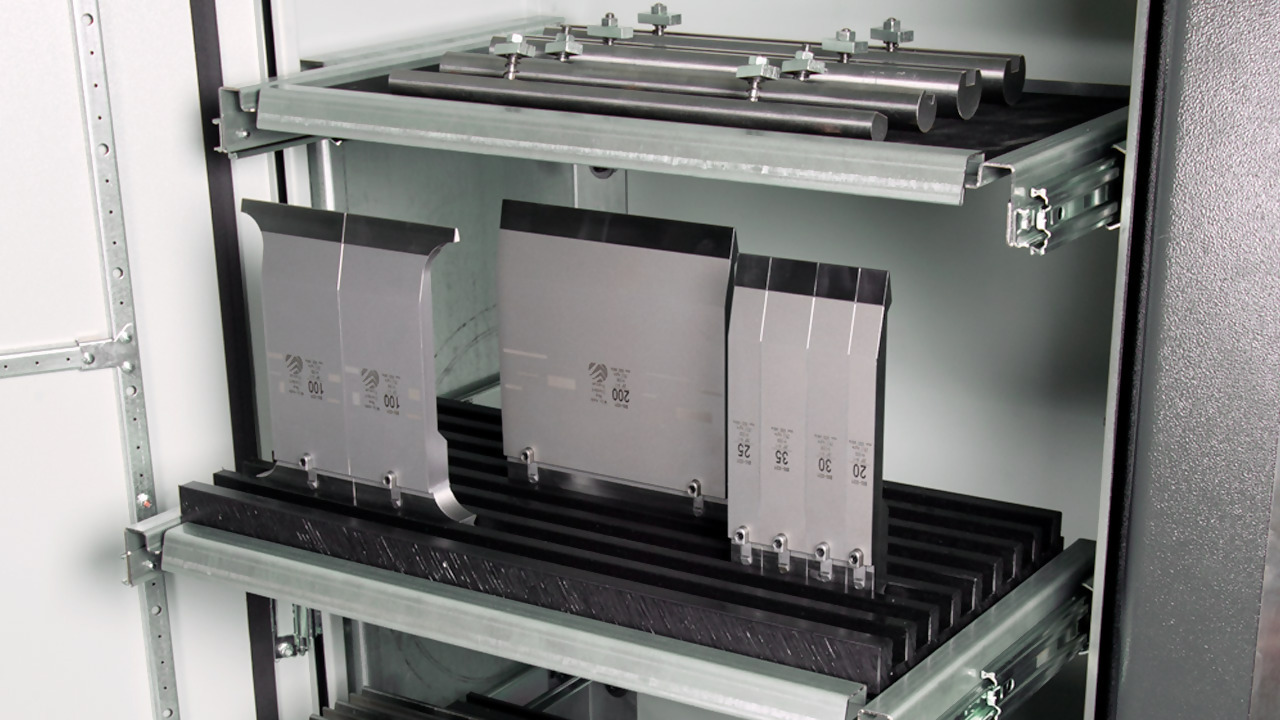

Materials Cupboard

Materials Cupboard
Materials cupboard on the machine. Storage facility for – for example – tools or documentation. No more wasting time searching for your tools.

Complete touch screen convenience

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 19” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
