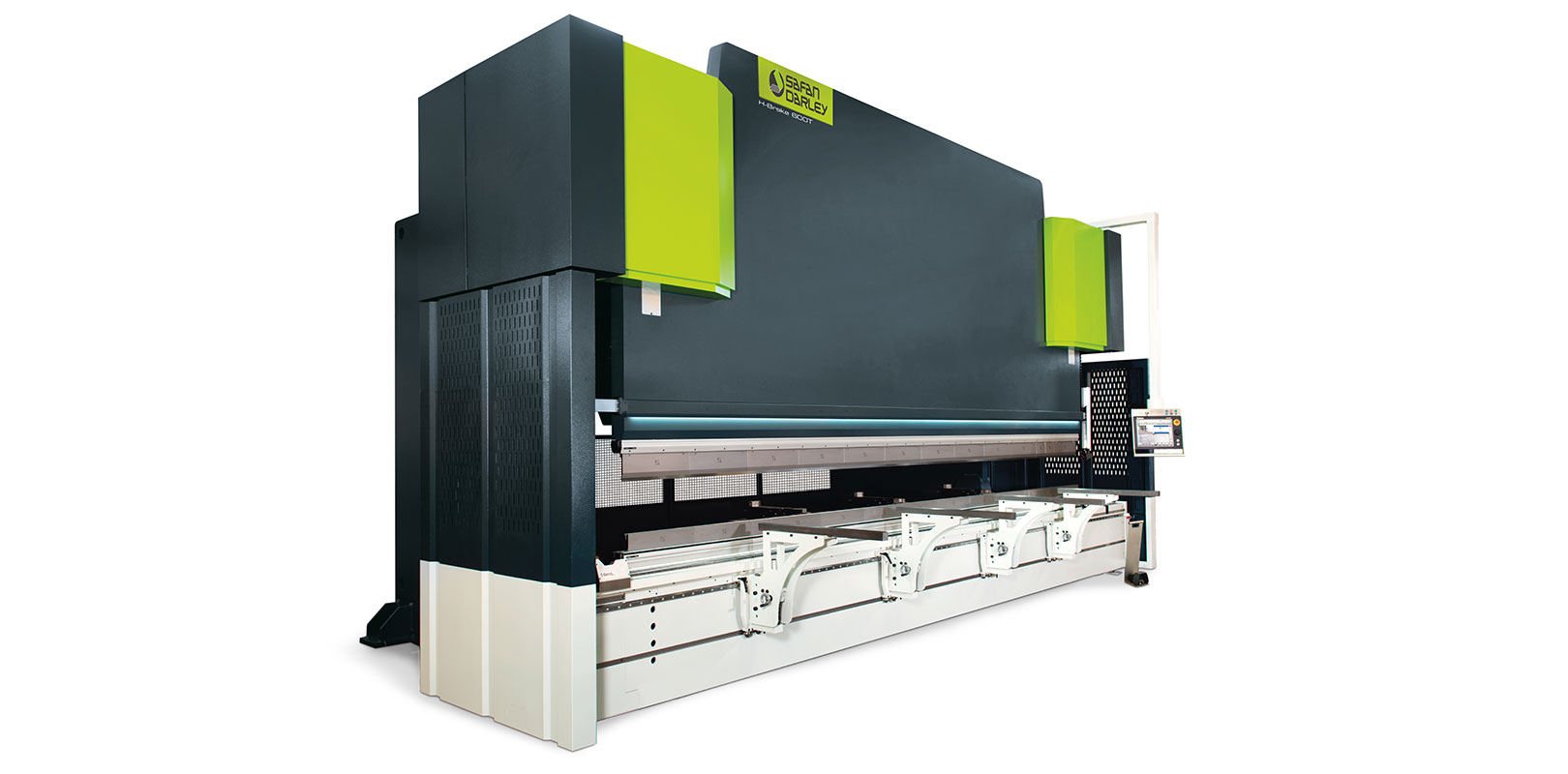

The HD machine with HD options
- High-end press brake with Y-Axis repeat accuracy (0,01mm)
- Robust & durable construction
- Quick setup and fast cycle times
- High level of freedom with 2 different types of control types

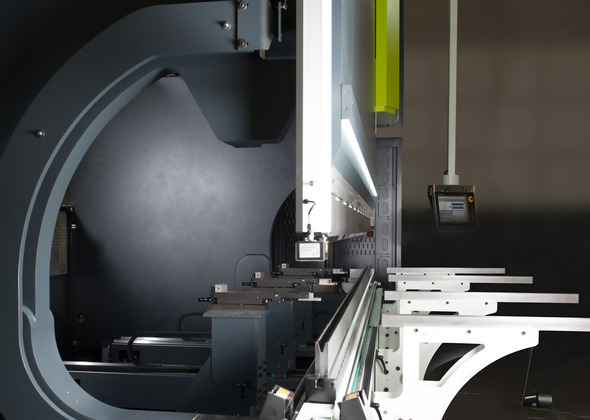

- Flexible throat & Q dimensions
- Custom made solutions
- Versatile bending aids
- A large variety of tonnages and lengths
- Wide range of flexible tandem solutions
- The first bend is always perfect ( within 0,5°) with the E-bend L

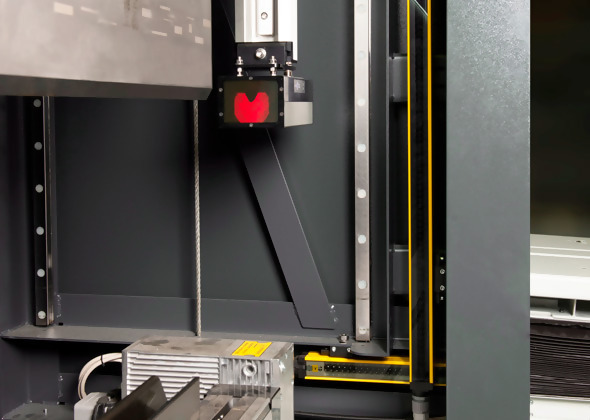

Integrated safety
Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls. In addition, the SafanDarley E-Brake has an additional in-built safety provision.
Technical Specifications
- Delem DA 66T 2D or E-Control EC20 controls
- Controls mounted on a swivelling arm on the right side of the machine
- Y1/Y2 axis are CNC-powered
- X axis is CNC-powered
- R axis is CNC-powered
- Z1 and Z2 axis are controlled manually
- Wila NSCL-II Premium top tool adaptor equipped with mechanical clamping,with a maximum load of 250T/mtr top-bearing and 300 T/mtr shoulder-bearingand CNC deep-hardened tool clamping
- Wila NSCR-II Premium CNC-powered crowning using mechanical clamping,CNC deep-hardened tool clamping, maximum load 300 T/mtr, Tx/Ty alignment
- 2 support arms (300mm)
- LazerSafe light beam protection, type LZS-004 (Delem)
- Programmable and integrated safety light screen (E-Control)
- Foot pedal including “Hold To Run”-function
- Work area lighting on the front and rear side of the machine
- Electronic installation of mains connection 3/N/PE 50 Hz 230/400 VAC
- Machine is designed in accordance with the prevailing CE standards
| Model | 500-4200 | 500-5100 | 500-6200 | 600-4200 | 600-5100 | 600-6100 | 600-8200 |
|---|---|---|---|---|---|---|---|
| Tonnage | 500 | 500 | 500 | 500 | 600 | 600 | 600 |
| Working Length | 4200 | 5100 | 6200 | 4200 | 5100 | 6100 | 8200 |
| Model | 800-4200 | 800-5100 | 800-6200 | 800-8200 | 1000-6200 | 1000-8200 | 1250-6200 |
|---|---|---|---|---|---|---|---|
| Tonnage | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Working Length | 4200 | 5100 | 6200 | 8200 | 6200 | 8200 | 6200 |
Complete touch screen convenience
The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 19” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
