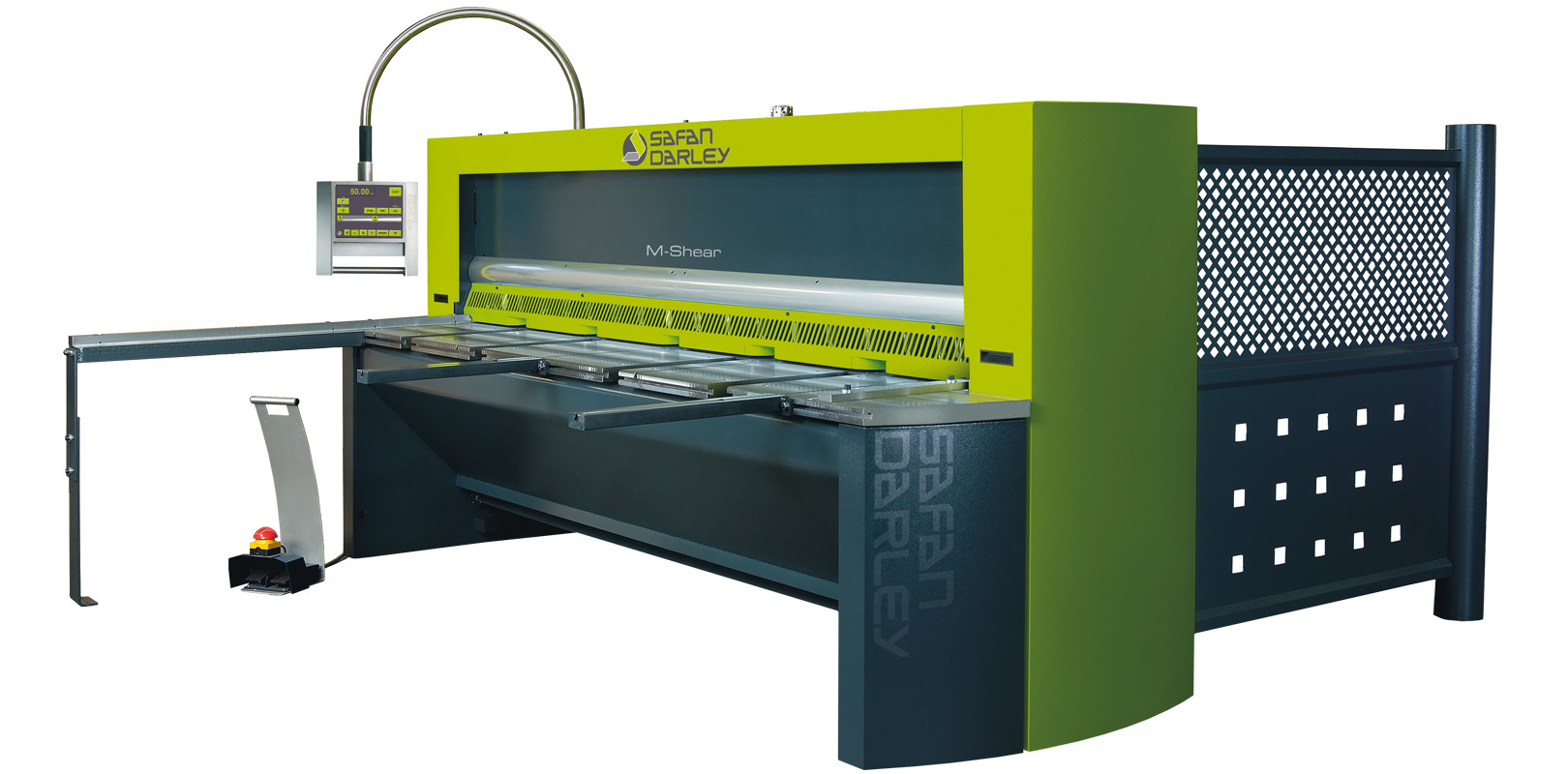

SafanDarley M-Shear

Superior integration of hydraulics and electronics

Energy saving hybrid drive, low Co2 emissions
Only 22 litre oil tank
Low noise
User friendly touch screen control

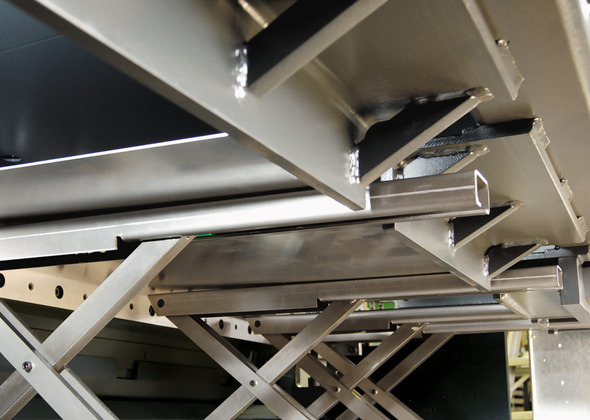

Return-to-Sender sheet support
Torsion free cutting of small strips
Scrap separation
Fully automatic adjustment of cutting angle and clearance

With the M-Shear, the blade cuts four ways

The robust hydraulic systems in the SafanDarley M-Shear are controlled by modern electronics. This means that the regulatory mechanism has evolved from hydraulic to electronic technology. A successful E-volution that increases both your productivity and the quality of your products.

Specification

Model	205-4	255-4	310-4	430-4	610-4	205-6	255-6	310-6	430-6	610-6	255-8	310-8	430-8	205-10	255-10	310-10	430-10	610-10	255-13	310-13	430-13	255-16	310-16	430-16
Cutting capacity in mm	4	4	4	4	4	6	6	6	6	6	8	8	8	10	10	10	10	10	13	13	13	16	16	16
Cutting length in mm	2050	2550	3100	4300	6100	2050	2550	3100	4300	6100	2550	3100	4300	2050	2550	3100	4300	6100	2550	3100	4300	2550	3100	4300
Main motor power in kW	11	11	11	11	11	11	11	15	15	15	15	15	15	15	15	15	18.5	30	30	30	30	30	30	30
No. of strokes (stroke length max. cutting edge)	44	39	34	22	14	32	28	24	15	12	19	16	13	16	14	12	10	5	20	18	14	14	12	8
No. of strokes (stroke length min. cutting edge)	110	100	90	60	48	90	85	80	34	30	40	36	30	35	32	30	24	16	50	46	38	38	34	26
Cutting angle 0.5°-max (°)	2	2	2	1.5	1.5	2	2	2	1.5	1.5	2	2	1.5	2	2	2	2	2	3	3	3	3	3	3
Back gauge reach in mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1250	1250	1250	1250	1250	1250
Backgauge speed in mm/sec	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200	125	125	125	125	125	125
No. of hold-down pads	14	17	20	26	36	14	17	20	26	36	17	20	26	14	17	20	26	36	17	20	26	17	20	26

Standard Configuration

Touch Screen control, type TS200 with TFT colour monitor on a swivel arm
CNC controlled backgauge
Automatic clearance and cutting-angle adjustment
Automatic retraction of the backgauge for narrow strip widths
Adjustable starting and end stopping position for the entire length of the cutting beam

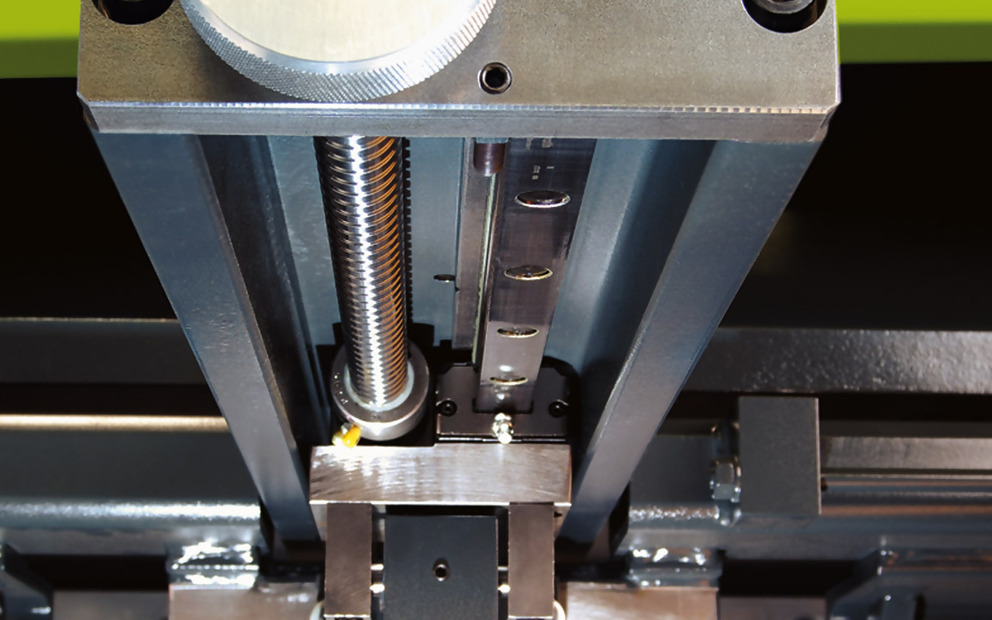

Backgauge supports equipped with ball screws and play free linear guides
Maintenance free cutting beam guides
Fine adjustment of backgauge parallelism
Adjustable hold down cylinders
Push-on adiprene covers for the hold down cylinders
Blades with 4 cutting edges, suitable for shearing stainless steel (max. tensile strength 750 N/mm2)
Cutting line lighting with cutting line indication
2 support arms, adjustable over the entire width of the table (length is approx. 1200 mm from the cutting line)
2 squaring guides on the right and left sides of the table (across the entire table width)
2 rulers in the table
T slots and hand slots spread across the width of the table
1 T slot on the front of the table
2 spring-action stops
Key switch (3 positions)
Safety features complying with the European Machine Directive
Finger guard
Filled oil reservoir
Foundation plates

Safety first

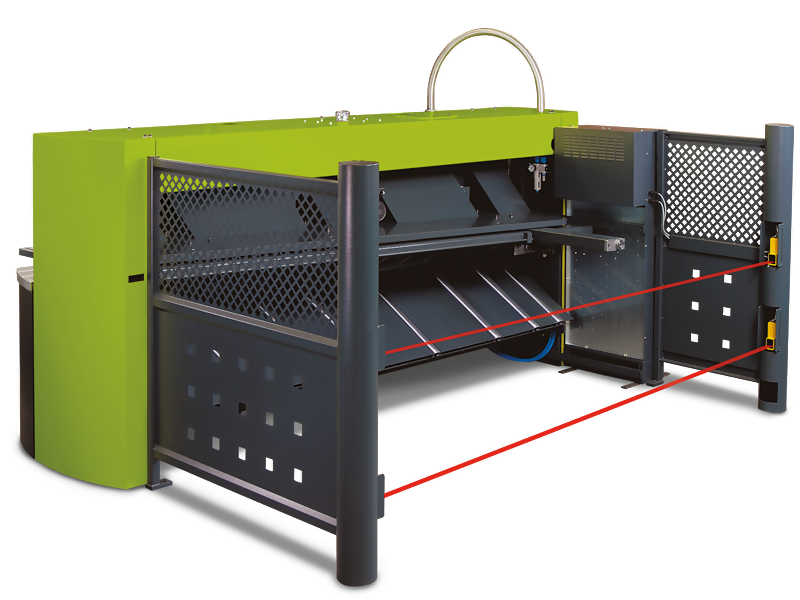

The safety features of the SafanDarley M-Shear fully satisfy the European Machine Directive. The cutting beam drive is equipped with block hydraulics. All visible high-pressure lines are protected. The shear has extensive guards protecting the back and sides.
