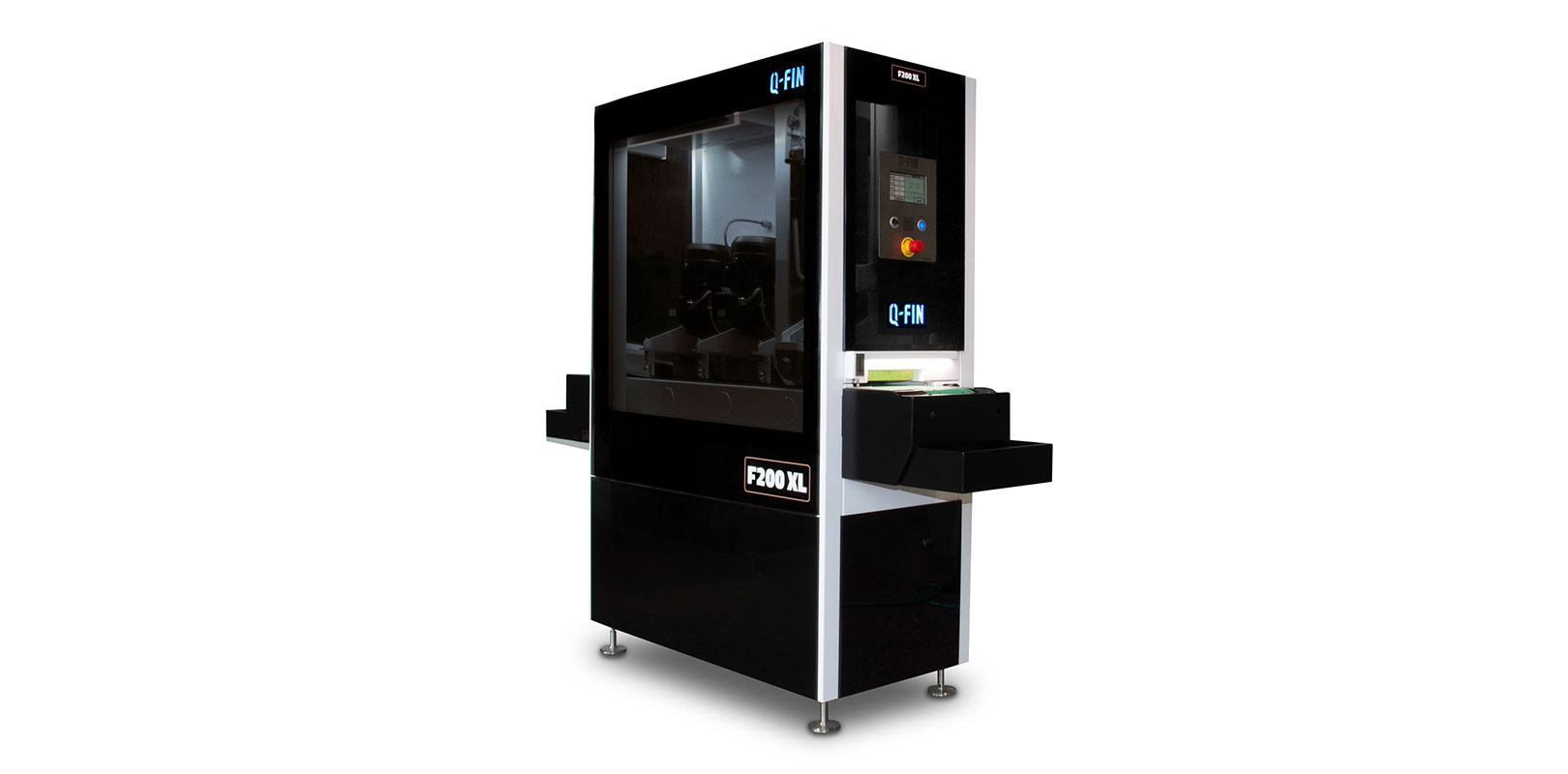

Q-Fin F200 – Deburring, grinding and/or edge rounding
The F200 is a 3 station finishing machine suited for deburring, grinding and/or edge rounding of flat metal parts. This deburring machine has a grinding belt followed by two stationary brushes, one turning clockwise and the other one counter-clockwise. The grinding belt eliminates burrs or can give the product a line grain finish. The brushes ensure the product no longer has sharp edges and provide the surface with a smooth finish.
The F200 is a 3-stations machine and is standard equipped with the brush-height tracking system developed by Q-Fin. Combined with the simple button system this ensures that the configuration and operation of the F200 is self-explanatory, resulting in the most user-friendly machine available on the market. The machine is standard equipped with a free adjustable speed for the convey belt and the grinding and/or brush head(s), which makes it possible to perform all imaginable processes and to realise all imaginable results. You decide on the desired finish yourself.
The F200 at your choice, either has a vacuum system (for non-ferrous metals, for example stainless steel and aluminium) or a magnet system (for ferrous metals). These systems ensure an effective fixation of the products to be processed on the convey table and as a result even small workpieces (from 10 x 10 mm with magnet-support) can be processed safely, quickly and without any problems. It is with good reason that at Q-Fin we are convinced of a narrow machine for small workpieces and a wider machine for large workpieces. In many cases, the throughput speed of this machine is 5 times higher than of comparable machines. Take the test yourself and make an appointment.
Suitable for processing:
• Stainless steel
• Aluminium
• Steel
Brush
The unique brush-height tracking system ensures the protection of the convey belt. Brush wear can be easily compensated for.
The brush ensures the rounding of the edges of the product, both on the outside as at any openings. Our standard brushes have a diameter of 255 mm. Depending on the material to be processed and the desired finish, different versions of brushes are available.
Operation
Technical Data
F200
- Conveyor belt is frequency controlled 0.3 – 5 m / min.
- With vacuum or magnet support
- 2.2kw brush motors – frequency controlled
- Maximum workpiece width 200mm
- Maximum workpiece height 100mm
- Connected load machine 400 V, 50 Hz, 8 kW, 16 Amp.
- Dimensions 1850 x 670 x 2145 mm. (L x W x H).
- Weight 1090 kg.
