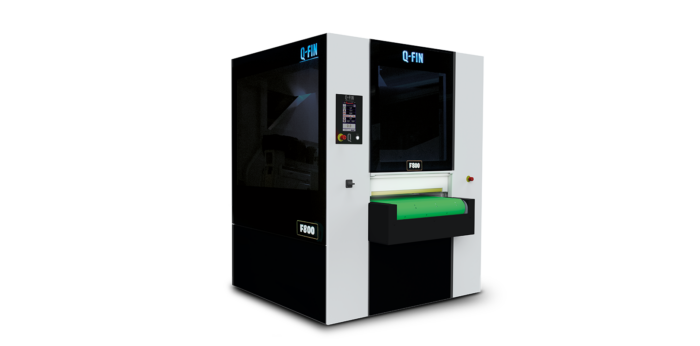

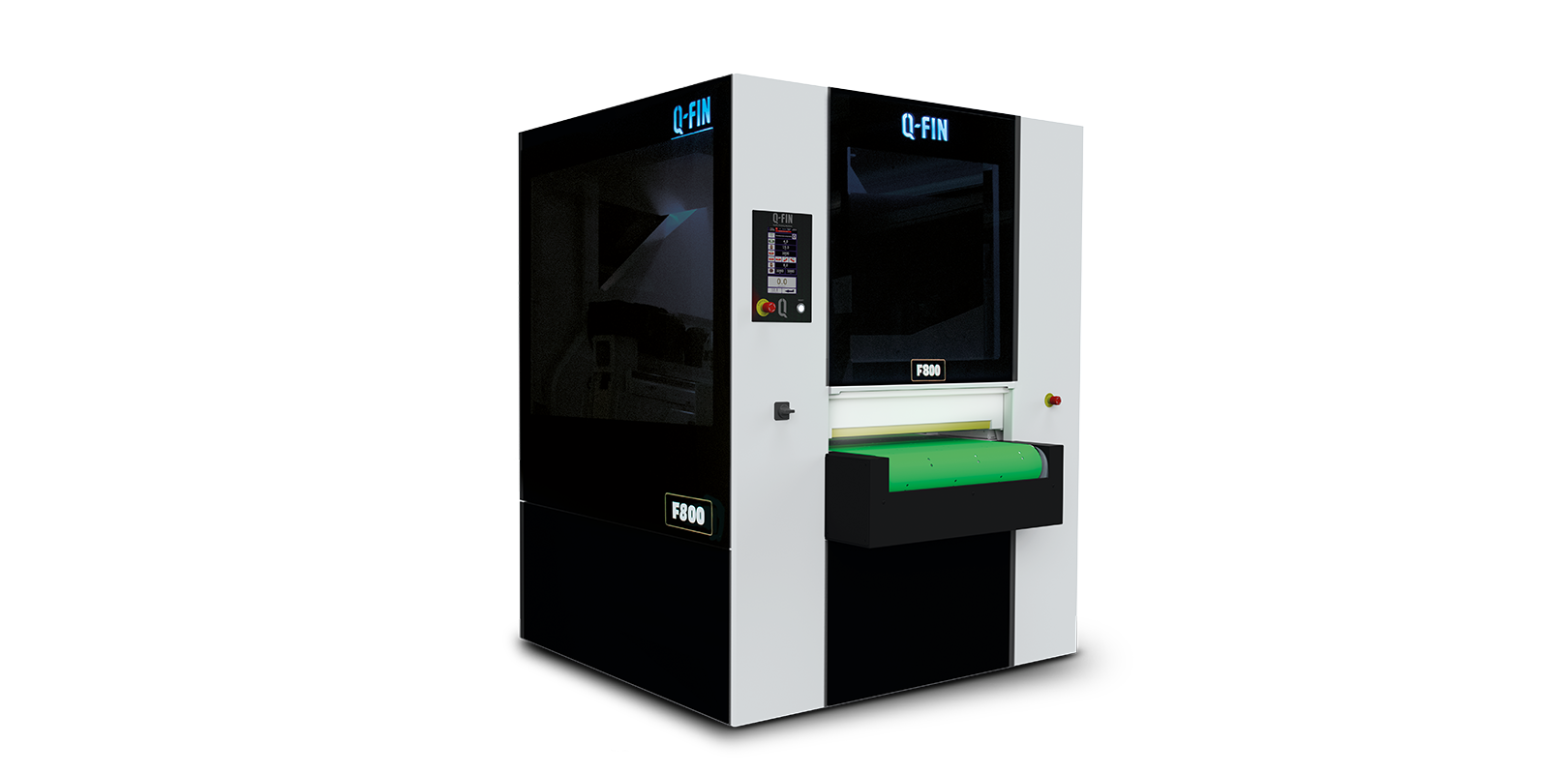

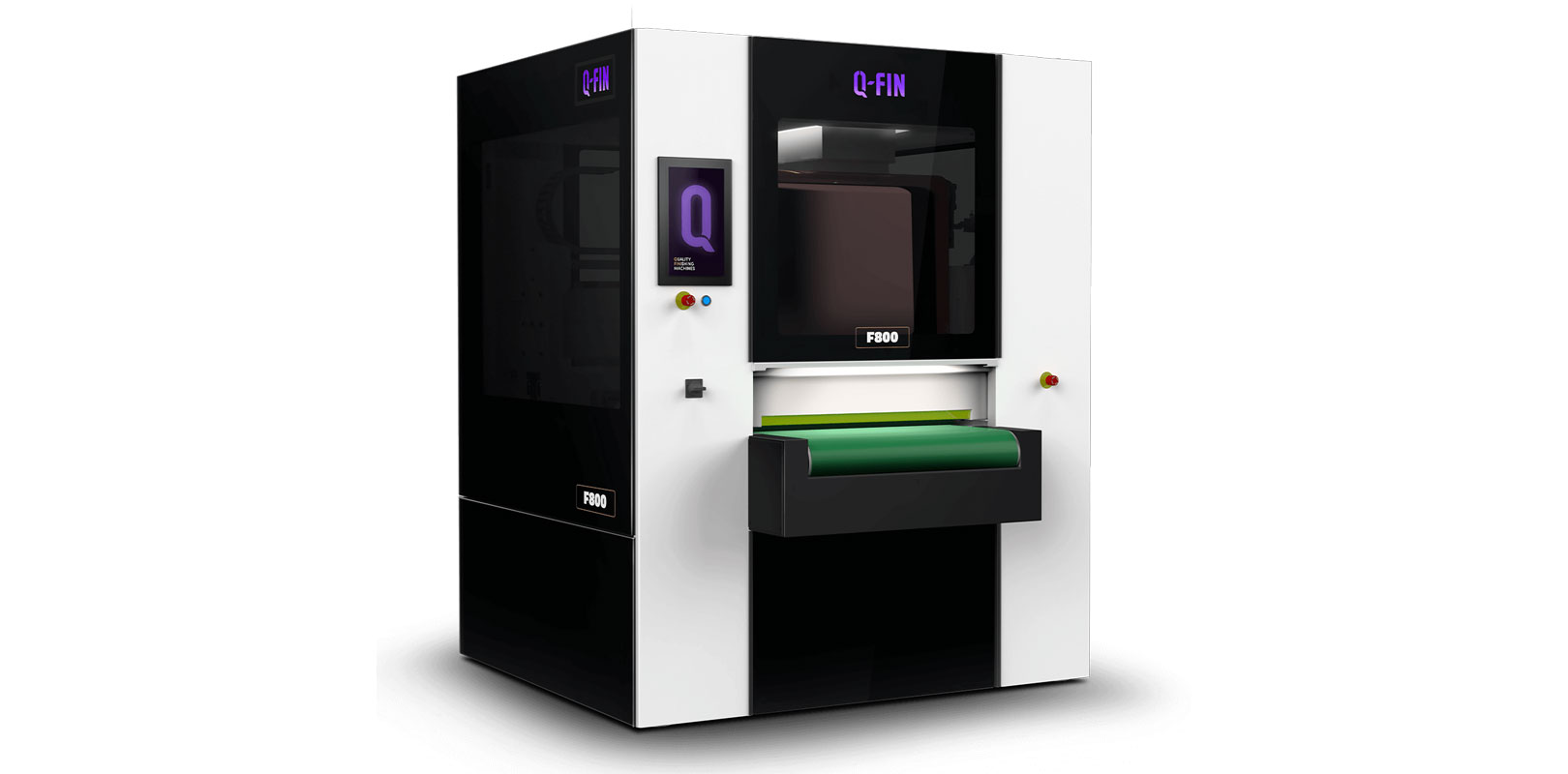

Q-Fin F800 – Deburring, grinding and edge rounding
Say goodbye to sharp edges! This 800 mm wide deburring, edge rounding and finishing machine has 3 workstations: a grinding belt as the first station followed by two stations with 4 oscillating brushes in total. With this machine you can execute various finish methods including deburring, grinding, edge breaking, edge rounding, removing the oxide layer or heavy slag and linishing. The F800 is suitable for processing products up to 800 mm wide. In short, the perfect machine for finishing (non-)ferrous laser cut parts.
The F800 is a deburring machine suitable for finishing sheet metal products e.g. laser cut parts with a width up to 800 mm. You determine the finish and degree of edge rounding. Depending on the materials to be finished you select a vacuum or magnet system. The conveyor belt is adjusted according to your choice of system. The first station of the F800 consists of an abrasive head. The abrasive belt removes the burrs and incinerations marks from the product surface. You can determine the grain size of the abrasive belt yourself, depending on the height and hardness of the burr. Standard we supply a K120 abrasive belt with the machine. If you do not have any burrs you can leave the abrasive belt switched off. The second and third station is the so-called brush unit, equipped with 4 cross-rotating brushes. You can break the sharp edges of the product with this and provide them with a large radius.
You can also change the surface finish (e.g. more gloss / lower roughness value) by changing the type and grit of the brushes. By placing special steel brushes, you can remove oxide layer or do slag removal on steel product with the F800-MAG (with magnet system).
The F800 allows you to process your cut parts at high speed and do multiple finish operations in one pass.
Suitable for processing:
• Stainless steel
• Aluminum
• Steel
Brush system
The brush unit of the F800 is equipped with four brushes that rotate counter to each other. The brushes can be adjusted in height separately. The brush head oscillates with an adjustable stroke (short or long) across the width of the machine. This creates a non-directional finish and a smooth edge rounding. The speed of the brushes and the speed of the oscillation stroke are freely adjustable. Hereby it is possible to assemble 2 + 2 different brushes. Therefore, the Q-Fin offers a unique combination of operations, that can be processed in one passage. The brush head of this machine is also equipped with the brush height compensation system developed by Q-Fin. This system ensures for operational convenience with continuously the highest possible production speed and quality.
Operation
Depending on the materials to be finished you select a vacuum or magnet system. The transport mat is adjusted accordingly. In the standard version, the first station of the F800 consists of an abrasive head. The abrasive belt removes the burrs and incinerations marks from the product surface. You can determine the grain size of the abrasive belt yourself, depending on the height and hardness of the burr. Standard we supply a K120 abrasive belt with the machine. If you do not have any burrs you can leave the abrasive belt switched off.
The second and third station is the so-called brush unit, equipped with 4 cross-rotating brushes. You can break the sharp edges of the product with this and provide them with a large radius.
Abrasive Belt
The 800-mm wide abrasive belt is equipped with an oscillation system. This system ensures that the abrasive belt remains stable and that you do not get any snake pattern in the material when grinding. So, a lovely line grain finish is not a problem with this machine. Plus, you can determine yourself if you want to have a long or short scratch.
The grinding head is equipped with a unique, cantilevered construction what makes the F800 the most stable machine in the market. The abrasive belt is freely adjustable in speed. The grain size of the abrasive belt is by choice, depending on the height and hardness of the burr, among other things. Changing an abrasive belt is done within seconds.
