Q-Fin Return Conveyor Belts

Easily return finished products to the front of the machine.

Why have two operators around the deburring machine when the job can be done by one operator? A return conveyor makes processing of the sheet metal parts twice as efficient by automatically returning the products to the front of the machine. This eliminates the need to catch and stack finished parts at the back of the machine. The productivity of the first operator is doubled.

CB400 – CB800

• More efficient material handling
• Saves a second operator
• Suitable for variety of products
• Mobile setup
• Tailor-made for deburring machine

Suitable for
CB400
F200XL
F600
F1200

CB800
F600
SER600
F1200
F1200

The Q-Fin CB400 and CB800 return conveyor belts improve workflow and create an efficient solution for handling sheet metal parts without the need for an additional operator. The use of a return conveyor on a Q-Fin deburring and finishing machine means that products already finished on one side are returned to the operator on the infeed side of the machine. If desired, the operator can put the products through the machine again to finish the second side of the product as well. Or he stacks the products so that they can proceed to the next production step.

The result is more efficient material handling and labour savings. The independently adjustable speed control of the return belt, which is matched to the throughput of the Q-Fin deburring machine, enables the operator to process small to large series of products with little effort.

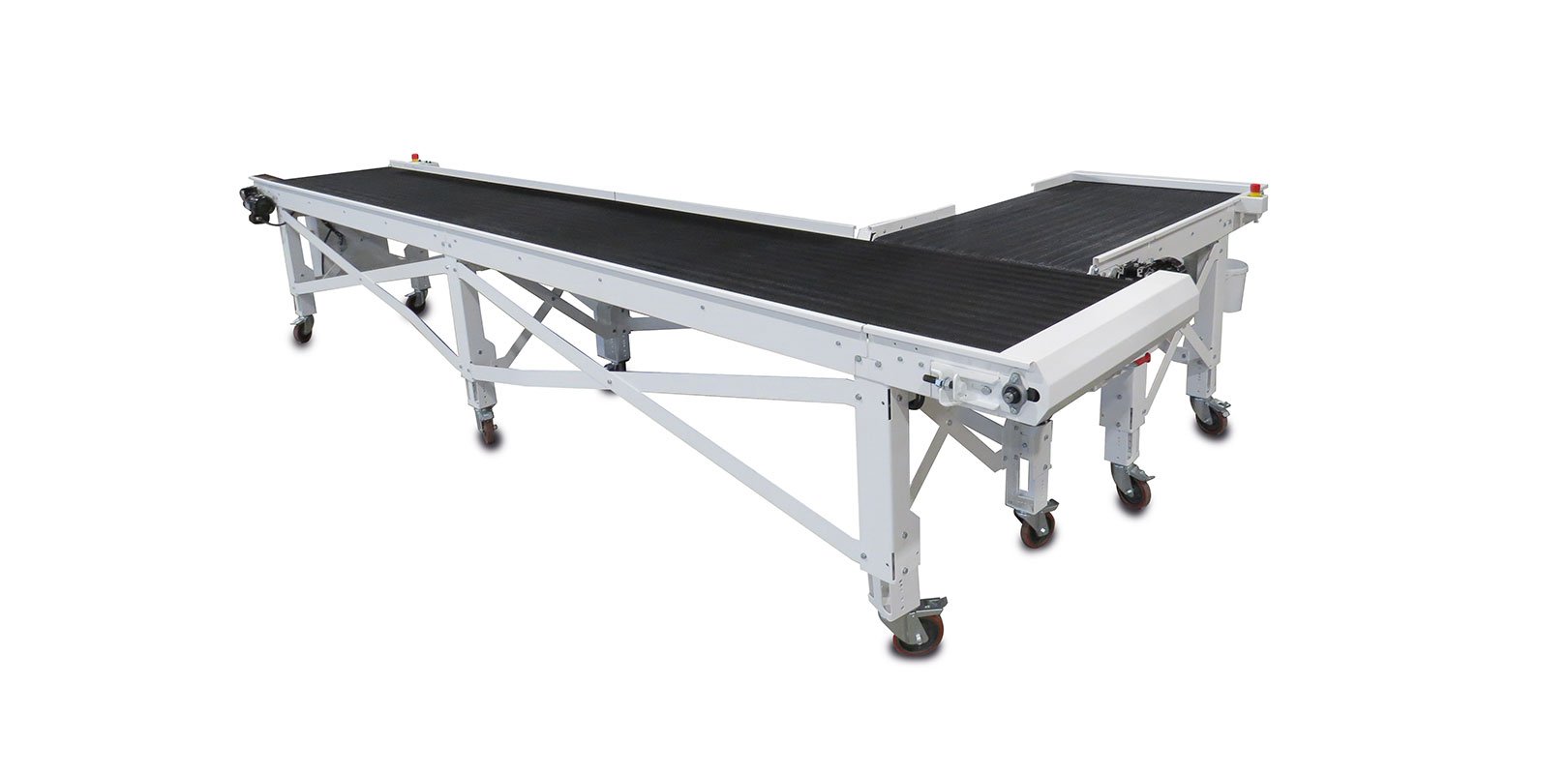

There is a suitable return conveyor for every type of Q-Fin machine. The CB400-200 consists of a 400 mm wide conveyor belt with a chute and is suitable for installation on the F200 XL. The other return belts consist of a set of two tables. The frames of these separate tables are fitted with wheels so that you can easily move them to the side when not in use.
