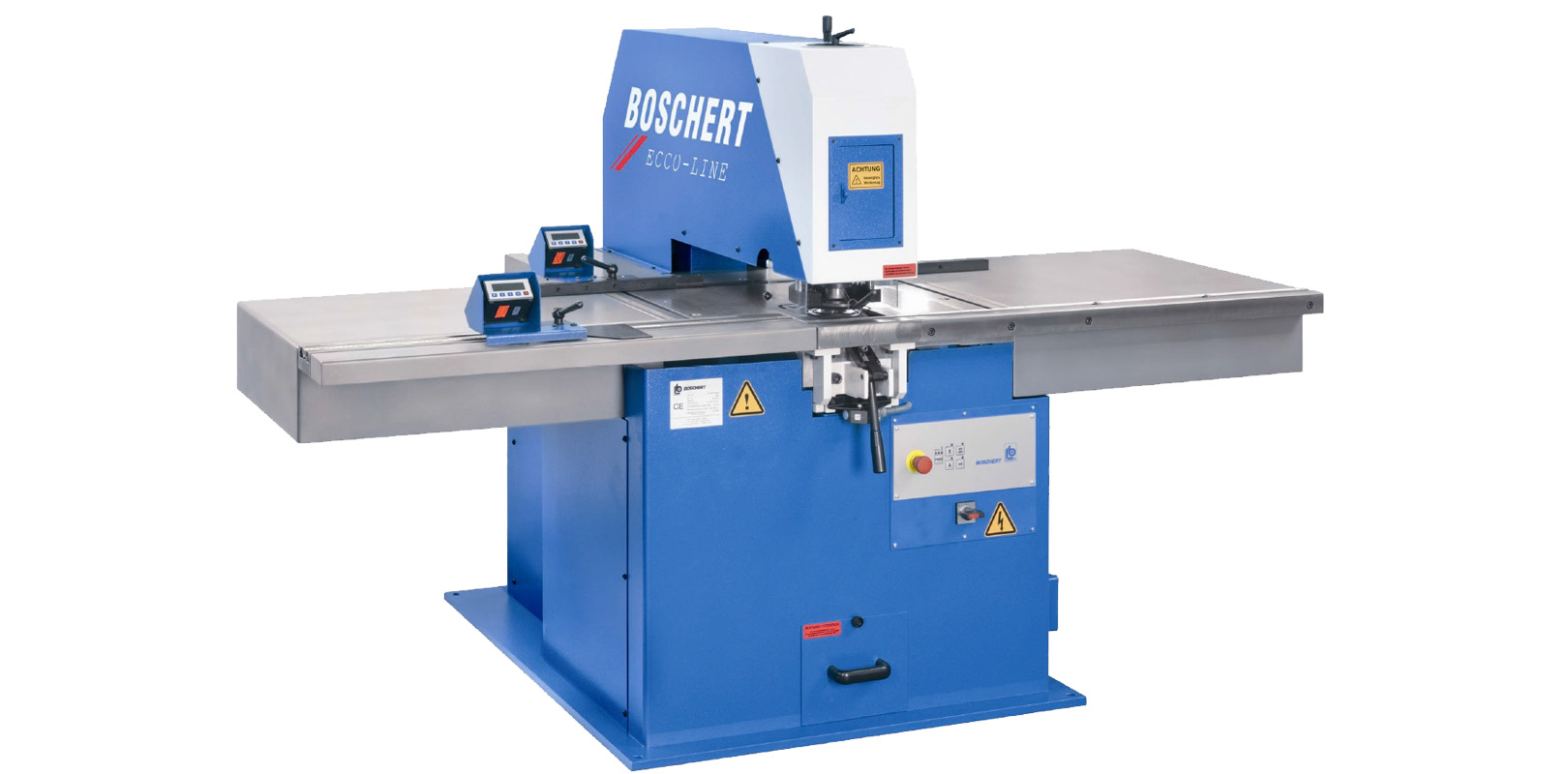

A must for every sheet metal company
All ECCO Line machines are equipped with 28 t punching pressure (40 t on request) and Trumpf Tooling system.
All models are equipped with:
- constant punching pressure
- maintenance free hydraulic drive
- one stripper holder an plate
- two different stroke length
The ECCO Line earns money with:
- small and medium series
- single pieces and prototypes
Tooling system
The worldwide approved Trumpf tooling system is used on the ECCO Line (other systems on request, e.g. Amada, Rainer, XX28). The tool is put directly into the tool holder without an intermediate case. Through the large propagation of the Trumpf tooling, the machine is virtually always ready for operation.
7 seconds. The largest tool diameter is 105 mm (4″). Besides a wide range of standard toos, it is possible to manufacture arbitrary tool within the range of 105 mm diameter. The metal loss from sharpening will be compensated through changes of the punch stroke length. Exact alignment of cutting tools with ridig clamping ensures long tool life. It also enables the use of angled Whisper-Tools which can achieve a noise reduction of up to 50%.
| Working Area | |
| EL 300 x 500 | 370 x 700 mm |
| EL 500 x 1000 | 570 x 1200 mm |
| EL 820 x 1700 | 820 x 1700 mm |
| Performance | |
| Max. sheet thickness | 12.7 mm |
| Max. hydraulic punching pressure | 280 kN / 400 kN |
| Speeds | |
| Max. stroke rate | 100 strokes/min |
| Tools | |
| Trumpf style tools | |
| Max. punching diameter | Ø 105 mm or any shape within 105 mm / 74 mm optional 92 x 92 mm |
| Tool changing time | 15 sec. manual |
| Accuracy of punching | |
| With standard measuring scales | ± 0.2 mm |
| With digital readout | ± 0.1 mm |
| Space requirement and weights | |
| EL 300 Weight |
1520 x 940 x 1540 mm 1800 kg |
| EL 500 weight |
2400 x 1580 x 1540 mm 2500 kg |
| EL 750 weight |
3400 x 1580 x 1600 mm 3400 kg |
| Electrical values | 28 / 40 T |
| Electrical connecting value | 5 / 8 kVA |
| Hydraulic motor | 4 / 5.5 kW |
| Required fuse | 3 x 16 A / 3 x 16 A |
| Hydraulic oil | 50 / 115 litre |
Optional tooling enables punching of profiles up to 90 mm in height.
